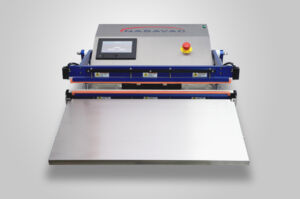

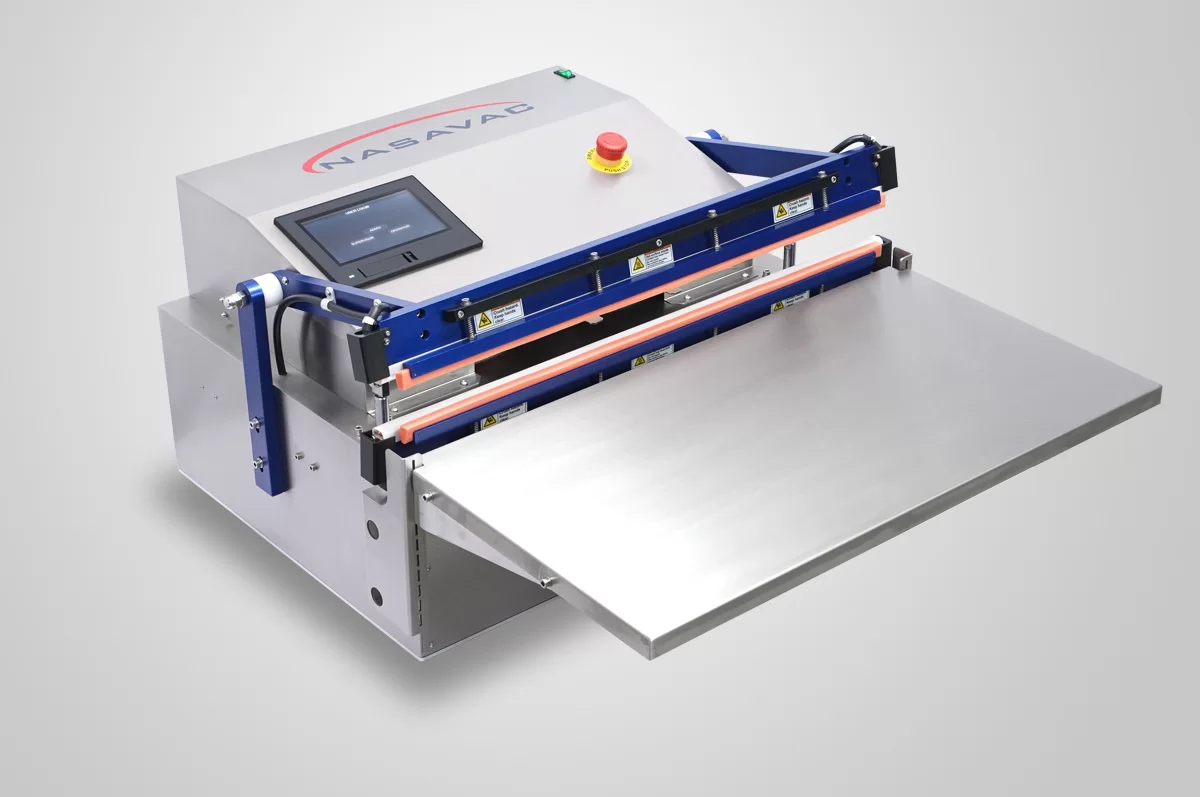

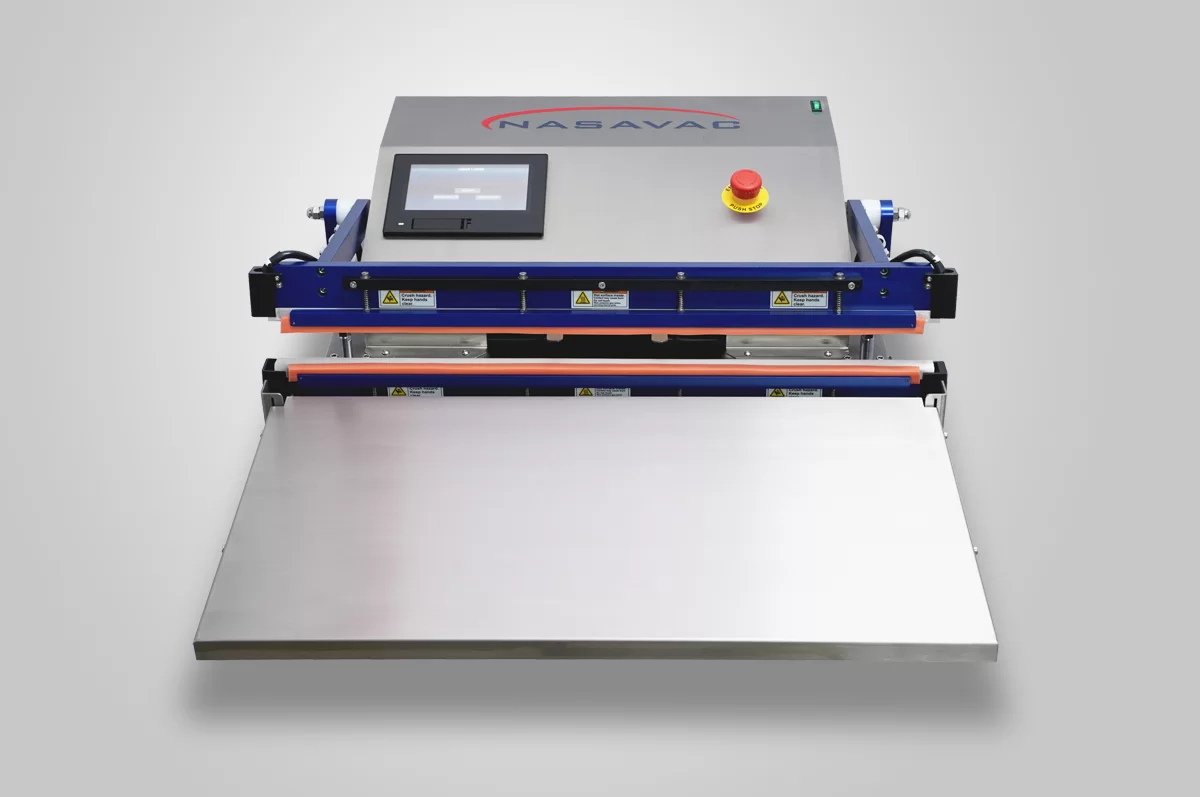

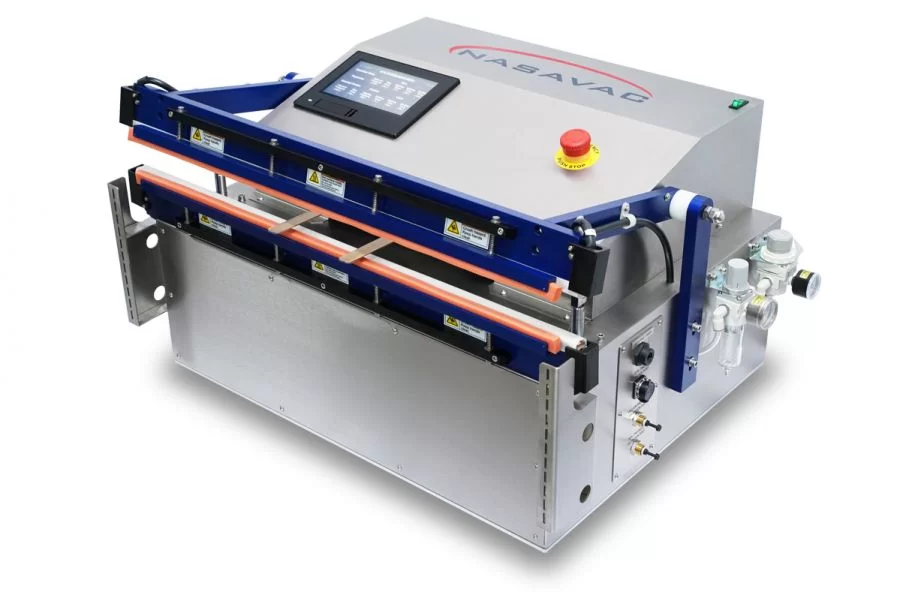

Medical Nozzle Type Vacuum Sealer With Gas Purge

Columbia series validatable nozzle type vacuum sealer with gas purge is engineered to conform with stringent guidelines of ISO 11607 terminally sterile medical packaging requirements. The built-in external validation ports allow for validation and calibration of internal controllers for IQ/OQ processes. With proper qualification, process consistencies and seal validation protocols in place the vacuum sealer eliminates serious issues for highly-regulated pharmaceutical, medical devices, and clinical industries.

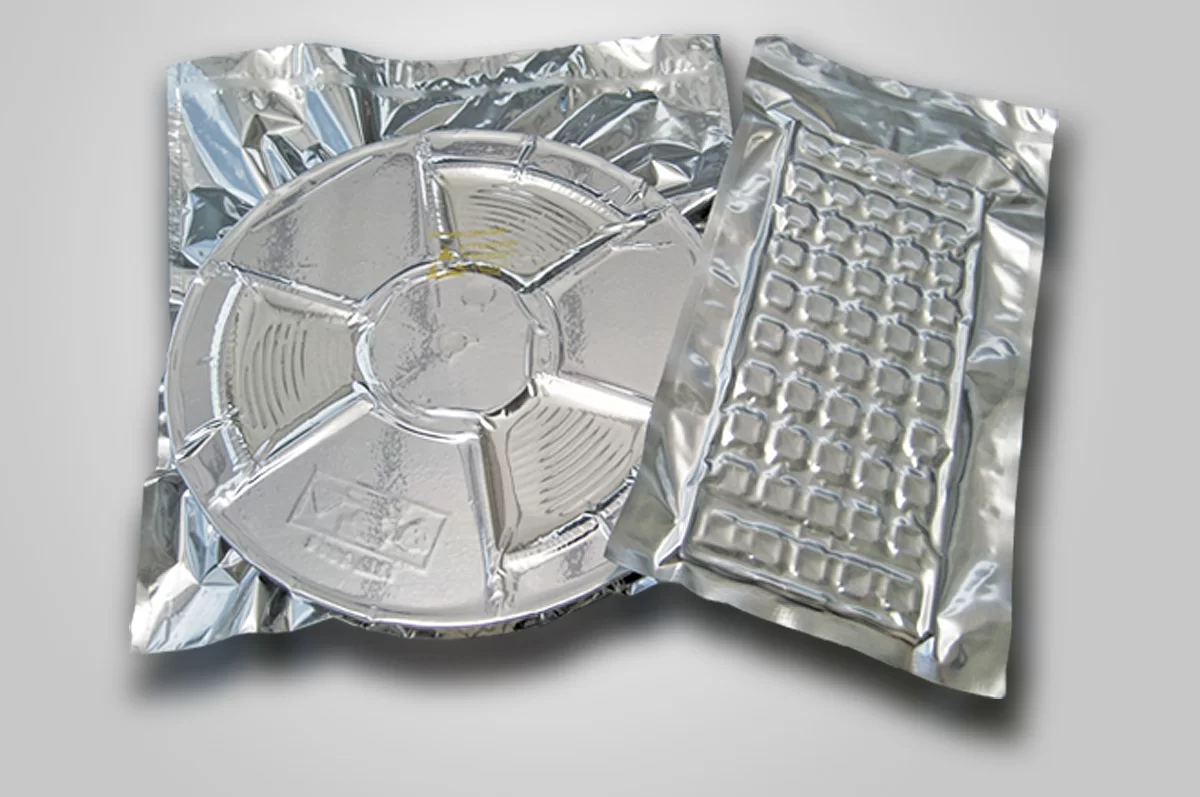

NasaVAC Columbia series validatable nozzle type vacuum sealer is equipped with ultra-impulse sealing system capable of temperature control and feedback system. The sealer produces consistent hermetic seals for a wide range of heat sealable materials coupled with temperature control, seal pressure control, microcontroller sealing and cooling timers. The Bi-Active impulse sealing system (top & bottom heating) seals Tyvek®, almost any medical pouch sealing application, all popular moisture barrier bag materials, anti-static pouches, and complex materials from 30” to 40” (bag opening length).

The powerful microcontroller has the capability of handling electronic records for seal parameters such as seal pressure, seal temperature, seal timer and cool timer with multilevel password protection and access to meet FDA’s CFR 21 Part 11 requirement. The protected electronic records are later to be retrieved by authorized individuals for computer-generated, time-stamped audit trials. It is most common practice for medical devices industry.

Features

Compatible for cleanroom application
Stainless steel chassis

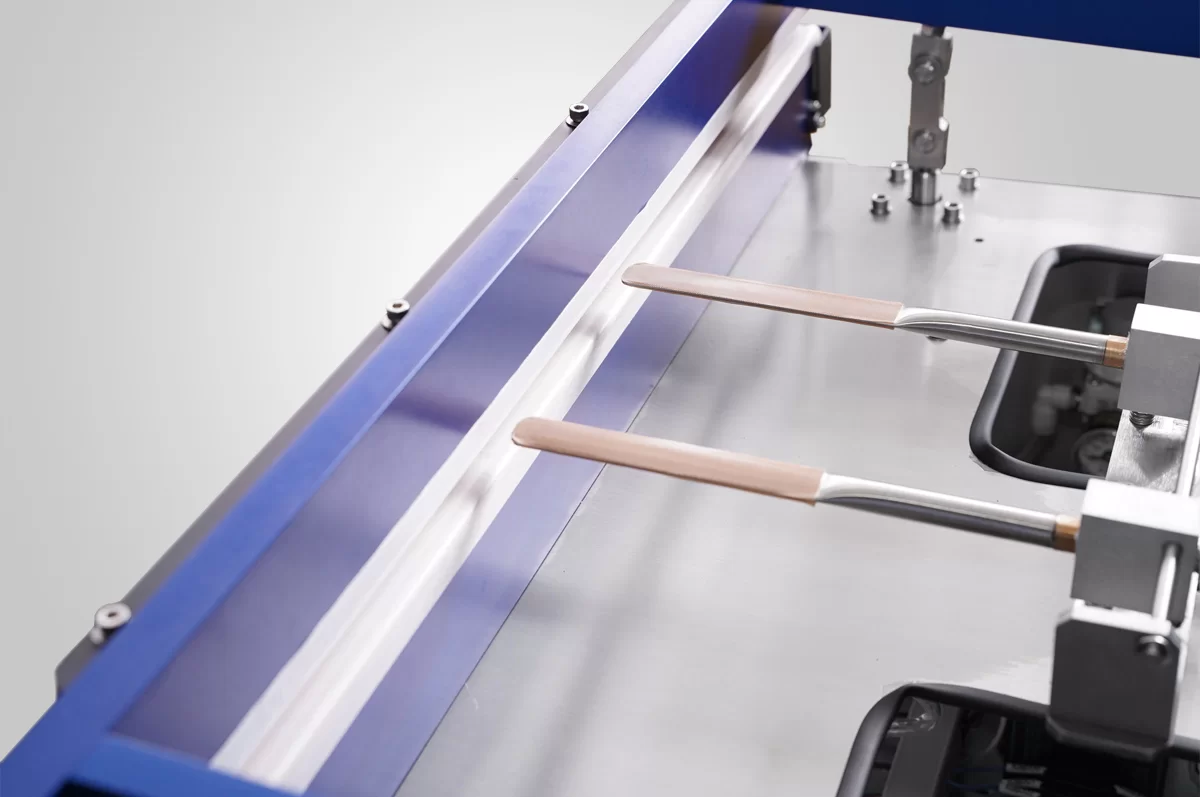

High flow stainless steel retractable twin nozzles
Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
Easy set-up requires only compressed air, standard electrical outlet
Safety Features: Object / Finger anti-pinch safety system, Built-in emergency stop push button

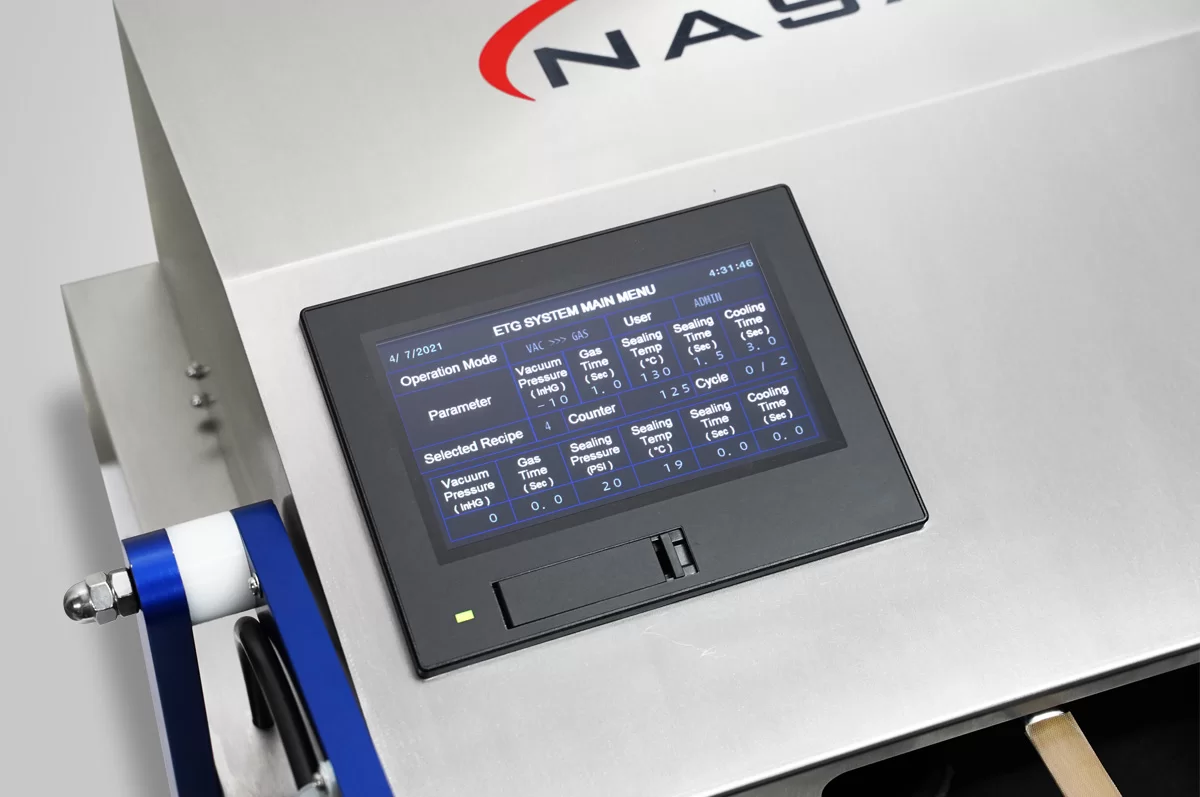

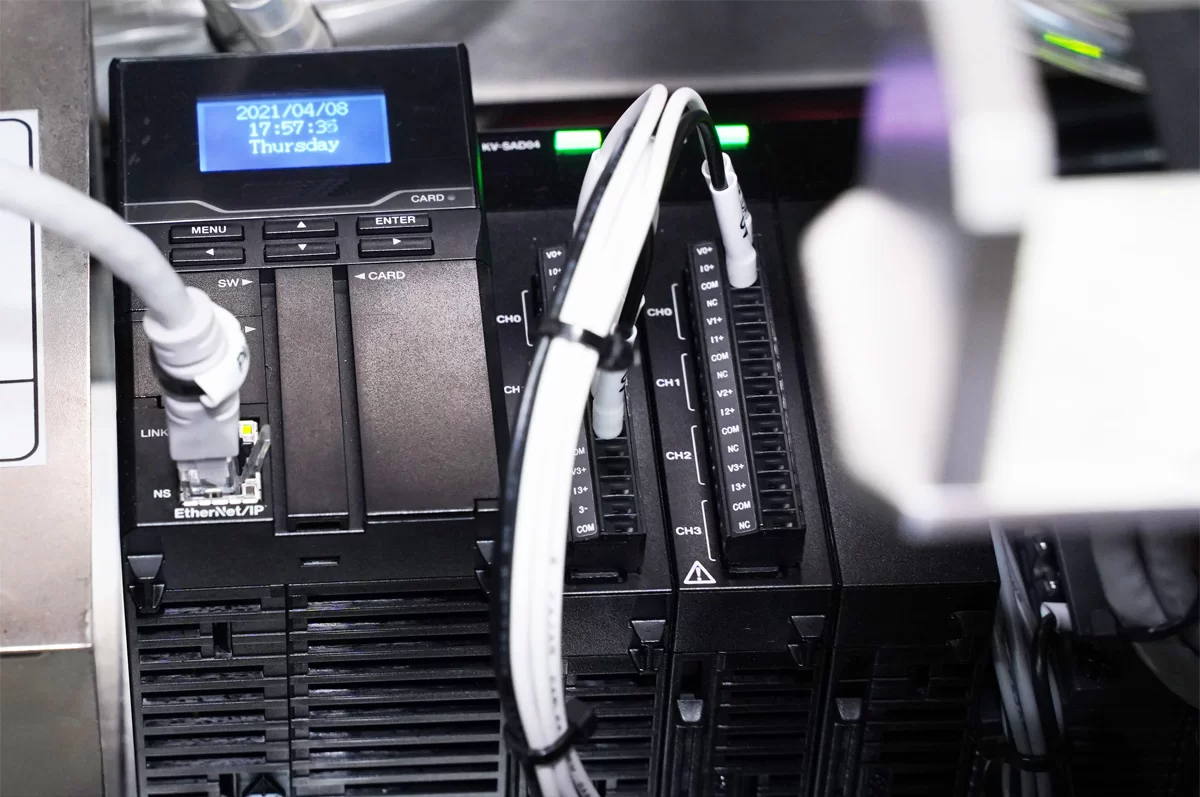

PLC control & touch screen (HMI) system
Multilevel password protection
6 programmable recipes
5 operation modes: Vac-Gas, Gas-Vac, Multi Stage Vac-Gas or Gas-Vac, Manual Vacuum & Seal Only
Multiple cycles of gas purging operation (1 to 10 cycles)
Sealing only mode without nozzles extend
Packing counter for production monitoring
Visible and audible alarm

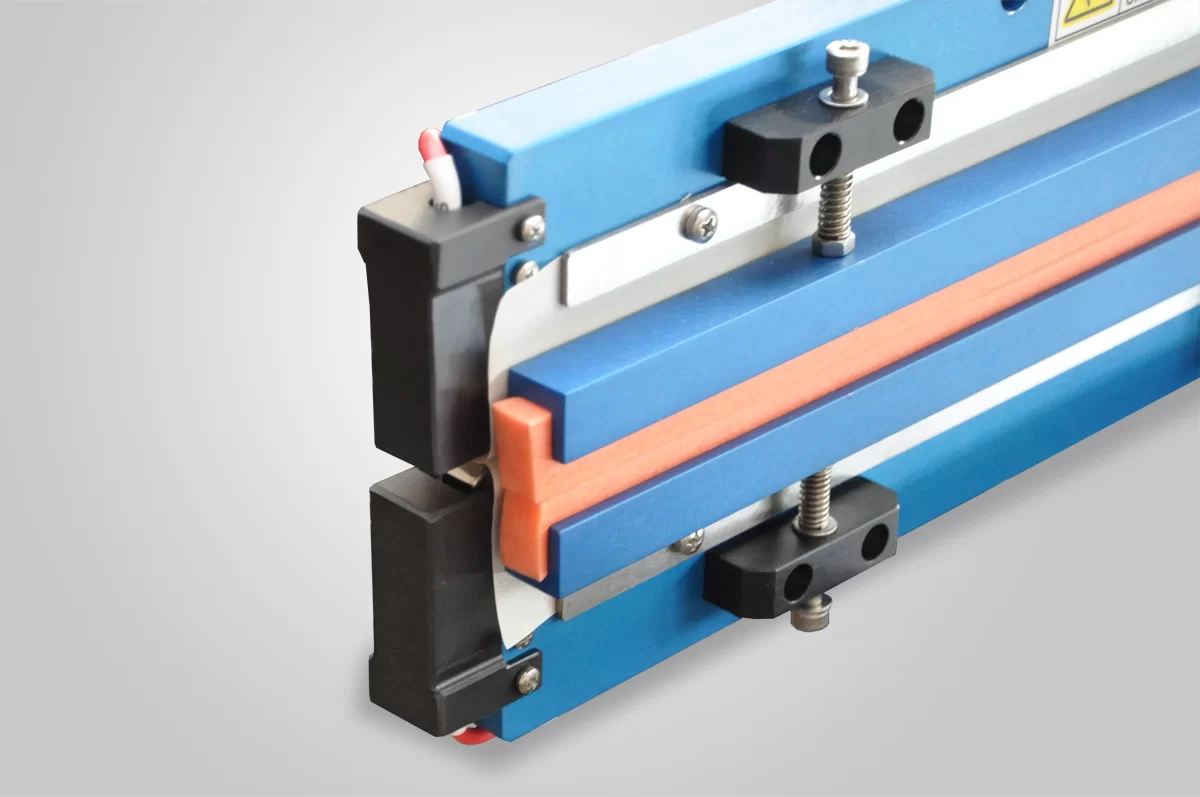

High performance Bi-Active impulse sealing system (top & bottom heating type)
Electronic foot pedal switch activated
Process validation
Calibration
Data Logging

Technical Specifications

Model	Columbia 30	Columbia 35	Columbia 40
Power:	Single Phase AC 110V, 60Hz
Air Requirement:	87 PSI @ 5 cfm
Gas:	Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N₂), Argon (Ar) or Carbon Dioxide (CO₂)
Dimensions:	(L) 30.5″ x (W) 26.5 x (H) 17.5″	(L) 35.5″ x (W) 26.5″ x (H) 17.5″	(L) 40.5″ x (W) 26.5″ x (H) 17.5″
Seal Dimension:	(L) 30″ x (W) 8mm	(L) 35″ x (W) 8mm	(L) 40″ x (W) 8mm
Operation Mode:	5 operation modes: Vac-Gas, Gas-Vac, Multi Stage Vac-Gas or Gas-Vac, Manual Vacuum & Seal Only
Vacuum:	Flow: 12.94 cfm, Pressure: -27 inHg (Max), Vacuum Ejector Pump
Sealing:	Ultra Impulse Sealing System with Temperature Feedback, Seal Pressure. Seal time starts when set temperature reaches preset to keep sealing consistency and ensuring repeatable seals

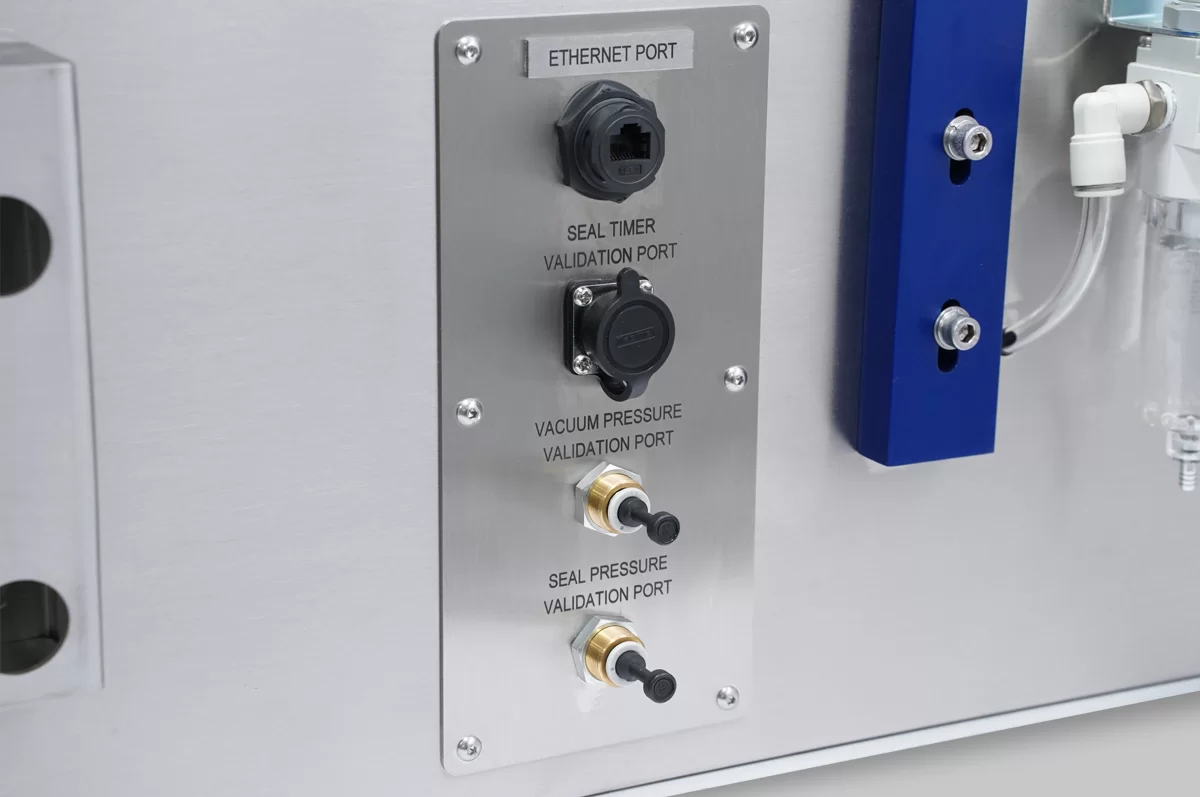

Validation Port:	Seal Timer, Vacuum Pressure, Seal Pressure
Calibration:	ANSI/ISO Calibration based on ISO/IEC 17025
