Discover Series V-Model
Advance Entry Level Nozzle Type Vacuum Sealer
Discover series nozzle type vacuum sealer is a total solution for vacuum packaging applications. It can handle sealing, vacuum sealing (V model) and modified atmosphere packaging (VG model). The Discover series is easy to operate and practically maintenance free. It seals all popular moisture barrier bag materials and anti-static pouches from 20” to 30” (bag opening length).
- Compatible for cleanroom application

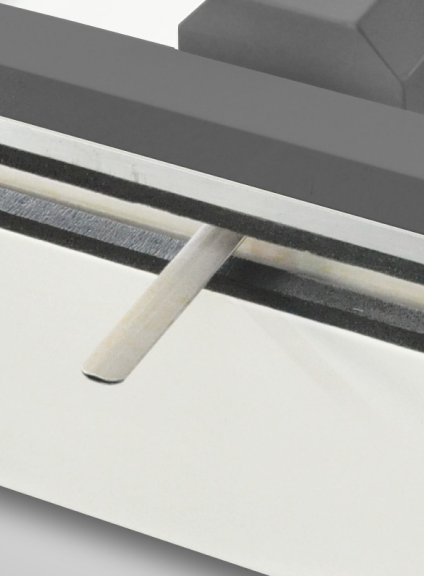

- High flow stainless steel retractable nozzle
- Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
- Object / Finger anti-pinch safety system
- Built-in emergency stop push button
- Easy set-up requires only compressed air, gas, standard electrical outlet

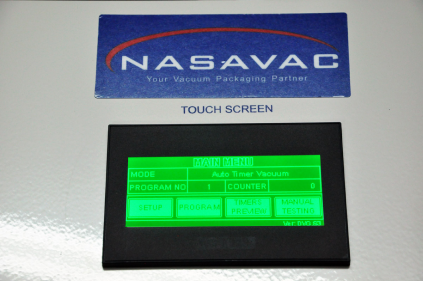

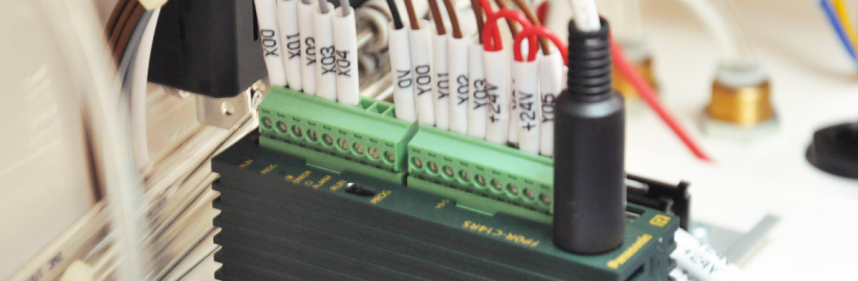

- PLC control & touch screen (HMI) system
- 10 programmable memory for vacuum time, gas time, heat time and cool time settings
- Password protection for setup page
- 3 operation modes: Auto Timer Vacuum, Manual Vacuum & Seal Only
- Packing counter for production monitoring
- Visible and audible alarm
- Vacuum gauge
- High performance impulse sealing system
- Electronic foot pedal switch activated
| Model | V-200 | V-250 | V-300 |
|---|---|---|---|
| Power: | Single Phase AC 110V, 60Hz | ||
| Air Requirement: | 87 PSI @ 5 cfm | ||
| Dimensions: | (L) 32″ x (W) 13″ x (H) 9″ | (L) 37″ x (W) 13″ x (H) 9″ | (L) 42″ x (W) 13″ x (H) 9″ |
| Seal Dimension: | (L) 20″ x (W) 6mm | (L) 25″ x (W) 6mm | (L) 30″ x (W) 6mm |
| Operation Mode: | 3 Operation Modes: Auto Timer Vacuum, Manual Vacuum, Seal Only | ||
| Vacuum: | Flow: 2.94 cfm, Pressure: -26 inHg (Max), Vacuum Ejector Pump | ||

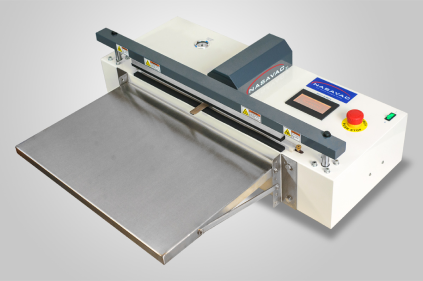

- Stainless Steel Working Platform
- Vacuum Filter
- Nozzle Length Extension
- Vertical Stand
- Other Sealing Width (8mm, 10mm)
- Other Voltage Configuration (220V/240V AC or 100V AC)
Auto Timer Vacuum Mode
Manual Vacuum Mode
Sealing Only Mode

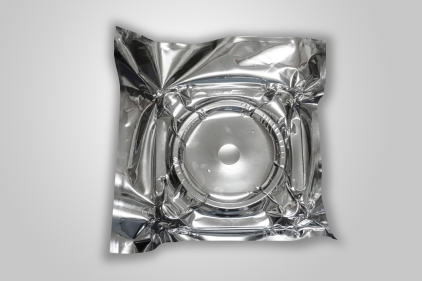

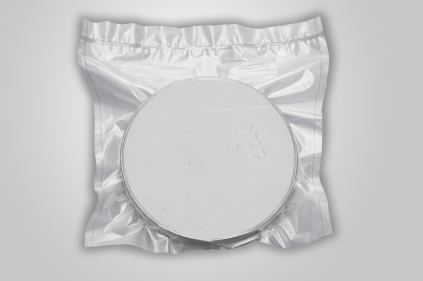

Wafer Shipping Jar Vacuum Pack
IC Tray Vacuum Pack
