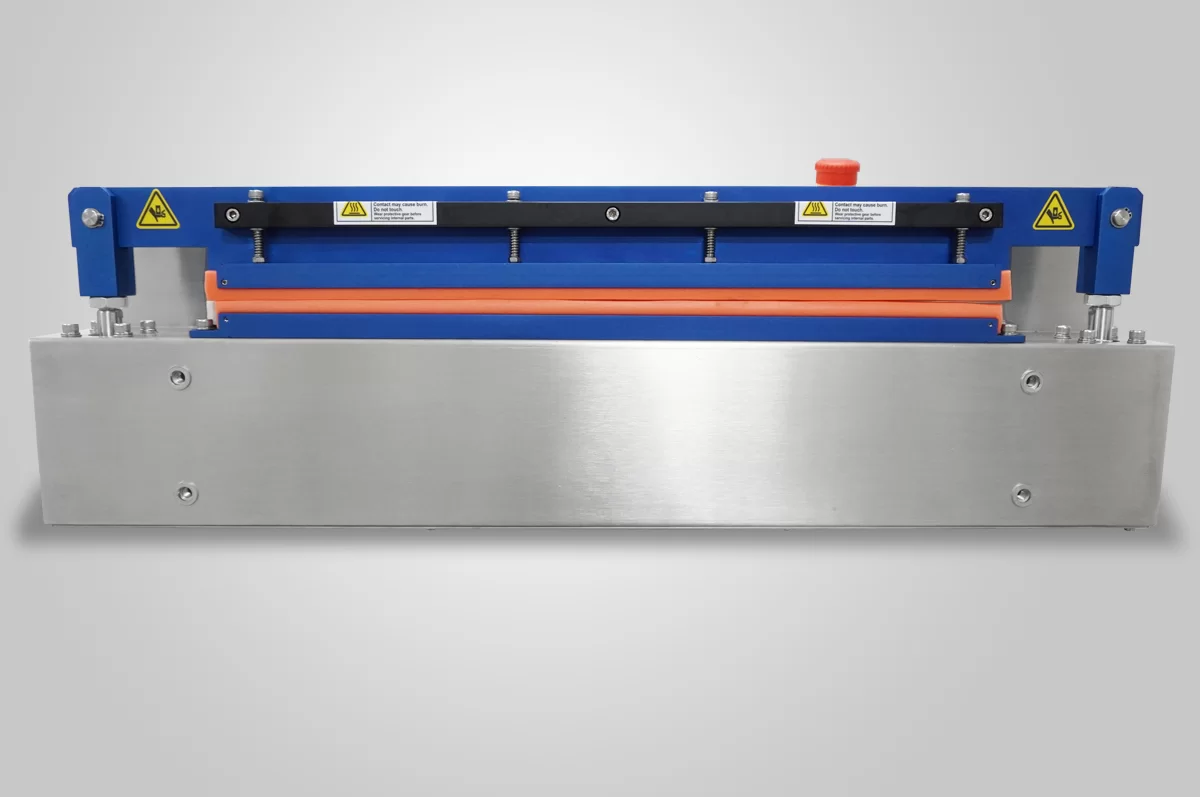

EDG Series
Nozzle Type Vacuum Sealer With Gas Purging
EDG series nozzle type vacuum sealer with built in gas purging function is designed for moderate duty usage. The EDG series is easy to operate and practically maintenance free. Built-in with stainless steel twin nozzles that create high flow vacuum and gas purging. It seals all popular moisture barrier bag materials and anti-static pouches from 20” to 35” (bag opening length).
- Compatible for cleanroom application

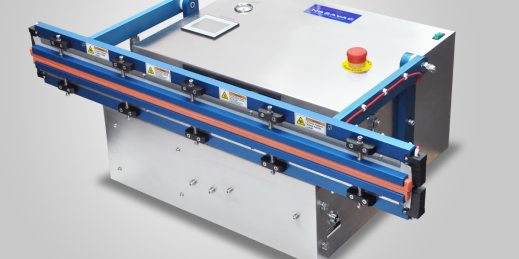

- Stainless steel chassis
- High flow stainless steel retractable twin nozzles
- Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
- Object / Finger anti-pinch safety system
- Built-in emergency stop push button

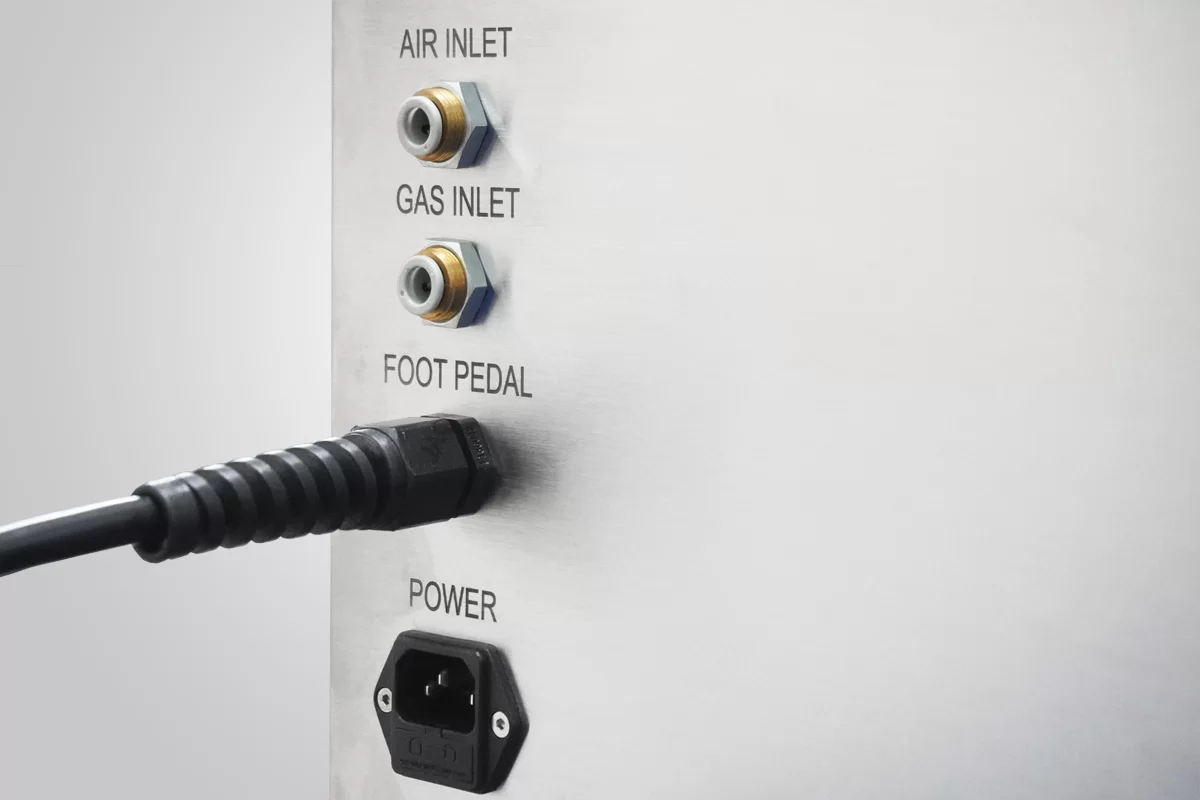

- Easy set-up requires only compressed air, gas, standard electrical outlet

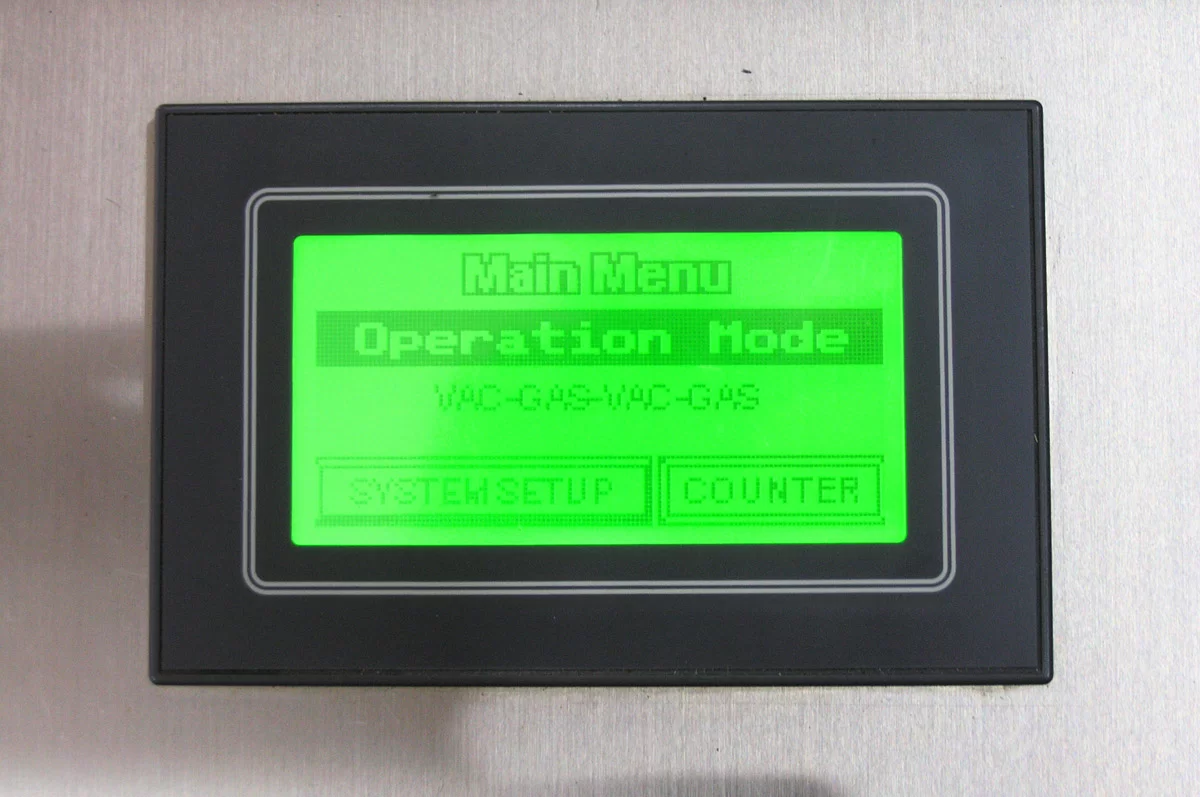

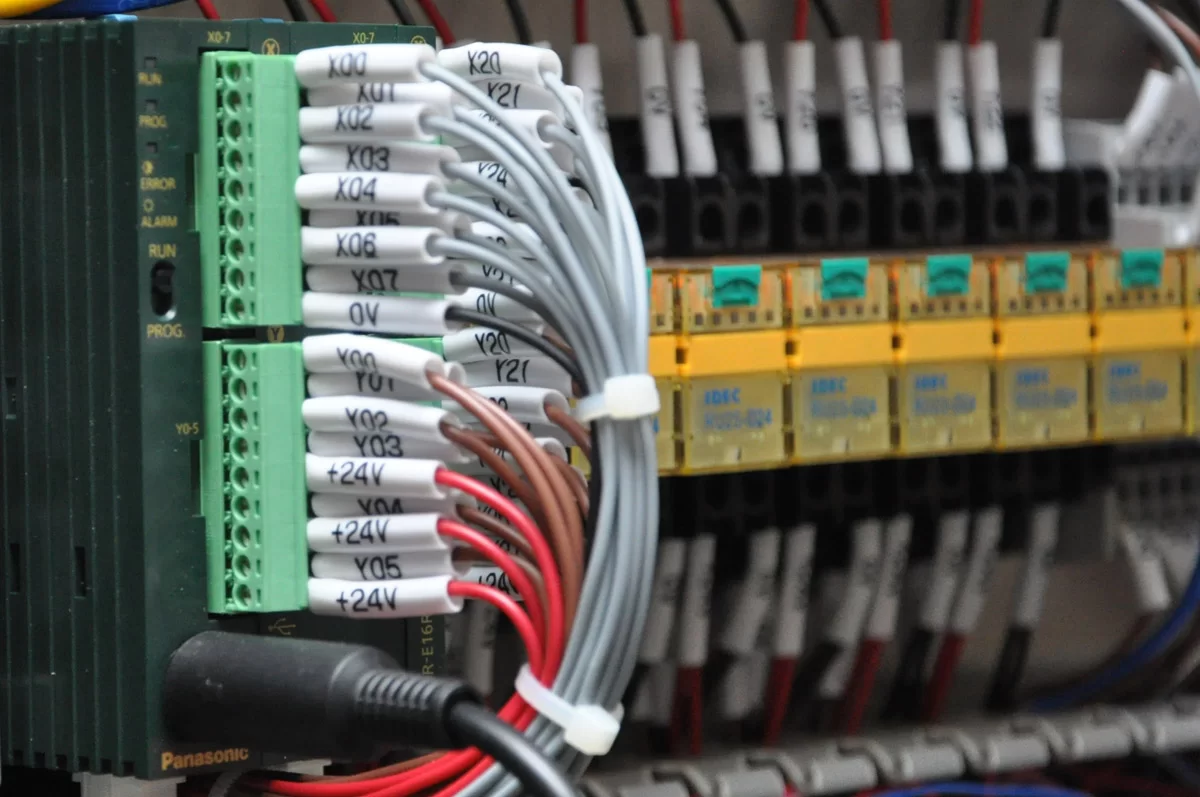

- PLC Control & touch screen (HMI) system
- 10 programmable memory for vacuum time, gas time, heat time and cool time settings
- Password protection for setup page
- 5 operation modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac & Seal Only
- Multiple cycles of gas purging operation (1 to 10 cycles)
- Sealing only mode without nozzles extend
- Packing counter for production monitoring
- Visible and audible alarm
- Vacuum gauge
- High performance impulse sealing system
- Electronic foot pedal switch activated
| Model | EDG-200 | EDG-250 |
|---|---|---|
| Power: | Single Phase AC 110V, 60Hz | |
| Air Requirement: | 87 PSI @ 5 cfm | |
| Gas: | Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2) | |
| Dimensions: | (L) 30″ x (W) 15.75″ x (H) 8.85″ | (L) 35″ x (W) 15.75″ x (H) 8.85″ |
| Seal Dimension: | (L) 20″ x (W) 8mm | |
| Operation Mode: | 5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac, & Seal Only | |
| Vacuum: | Flow: 2.94 cfm, Pressure: -26 inHg (Max), Vacuum Ejector Pump | |
| Model | EDG-300 | EDG-350 |
|---|---|---|
| Power: | Single Phase AC 110V, 60Hz | |
| Air Requirement: | 87 PSI @ 5 cfm | |
| Gas: | Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2) | |
| Dimensions: | (L) 40″ x (W) 15.75″ x (H) 8.85″ | (L) 45″ x (W) 15.75″ x (H) 8.85″ |
| Seal Dimension: | (L) 30″ x (W) 8mm | (L) 35″ x (W) 8mm |
| Operation Mode: | 5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac, & Seal Only | |
| Vacuum: | Flow: 2.94 cfm, Pressure: -26 inHg (Max), Vacuum Ejector Pump | |
- Stainless Steel Working Platform

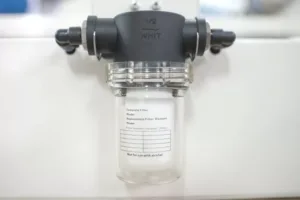

- Vacuum Filter
- Nozzle Length Extension
- Vacuum Pressure Control Option

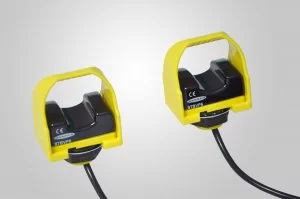

- Two-Hand Tie Down System
- Bag Stretcher
- Utilizing In-House Vacuum and Nitrogen Air Line
- Dry Vacuum Pump
- Vertical Stand
- 10mm Sealing Width
- Other Voltage Configuration (220V/240V AC or 100V AC)
Gloves Vacuum Pack

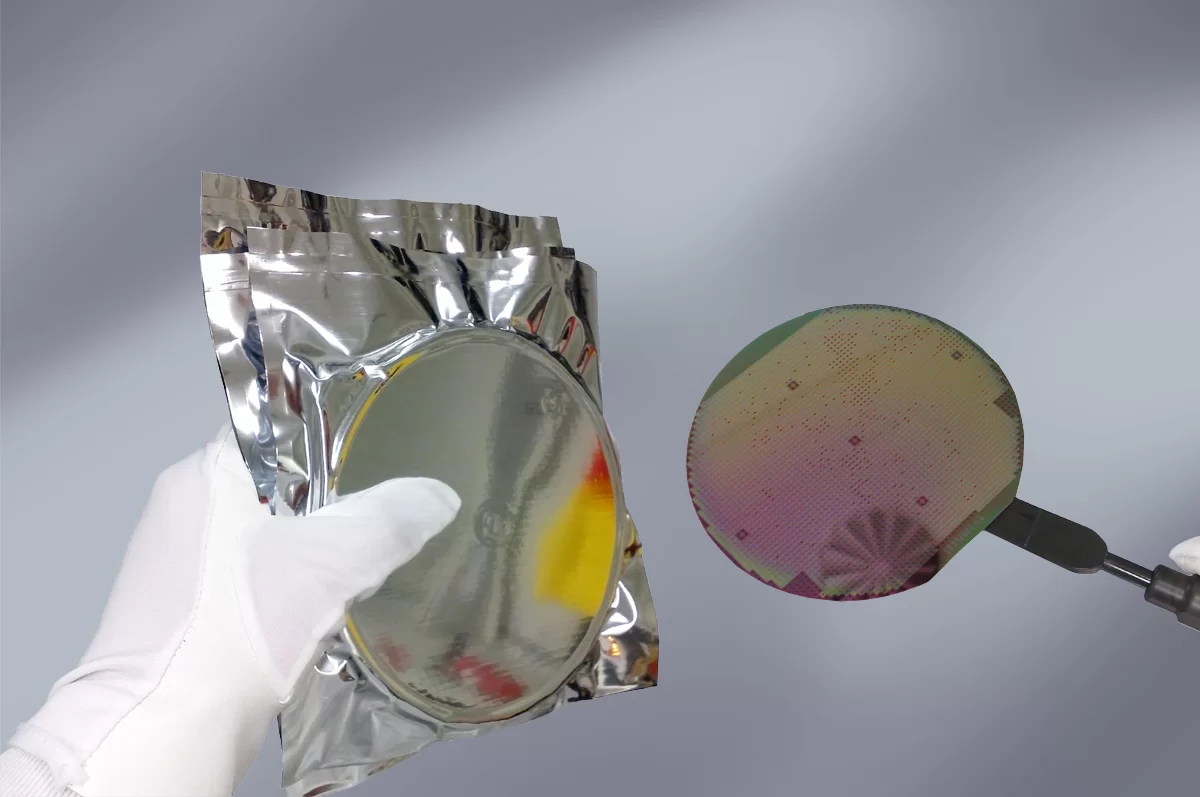

Wafer Container / Shipper Jar

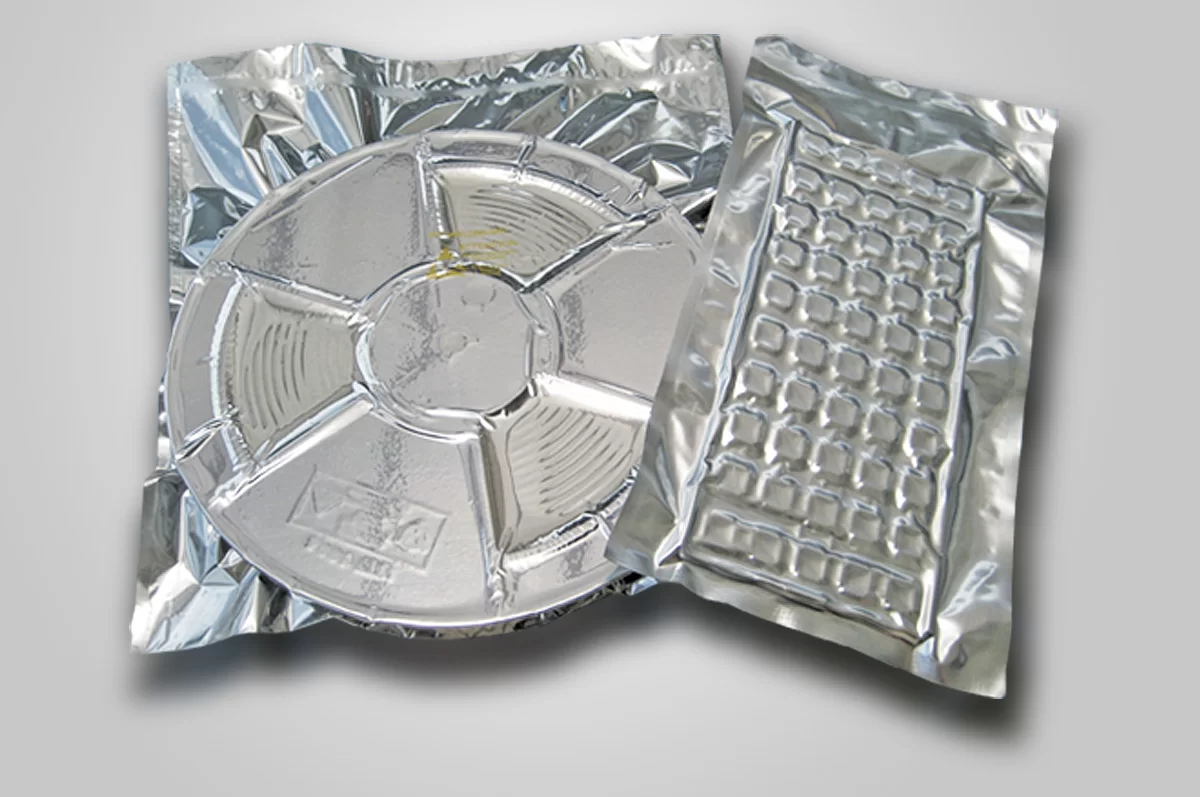

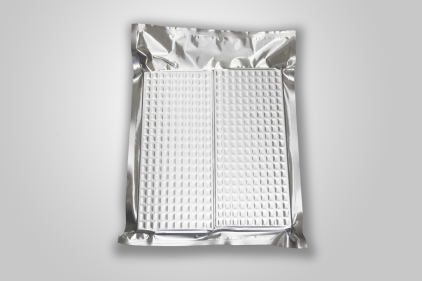

IC Tray Vacuum Pack
Tape & Reel Vacuum Pack
Sealing Only With Nozzle Extended Mode
Request Your Quote
Related products
-

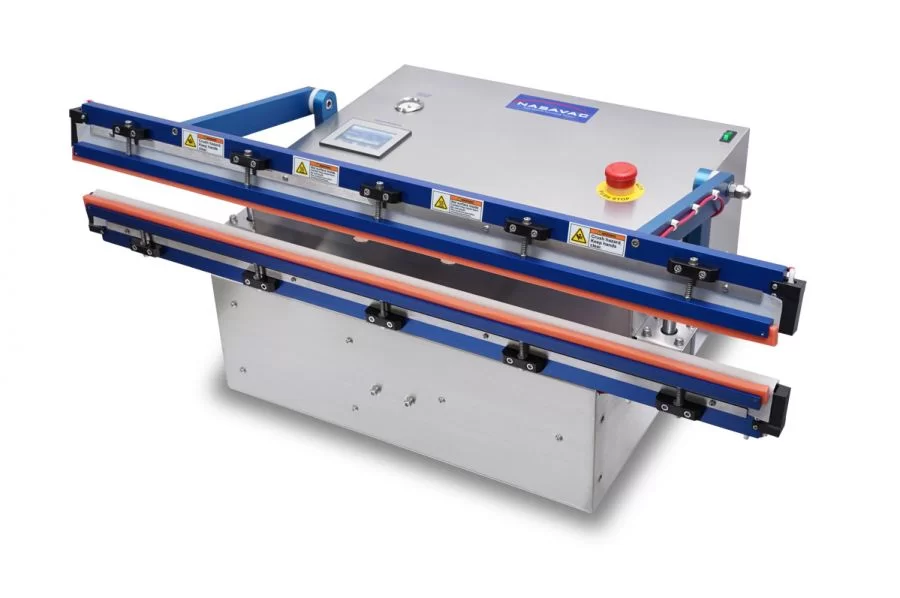

ETN Series
ETN series stainless steel vacuum sealer is engineered for heavy duty usage. It’s control system is powered by PLC controller and color touchscreen (HMI) for precise settings and user-friendly operations. The entire body is built with stainless steel to suite semiconductor, medical cleanroom standard and food industry requirements. Twin nozzles and high capacity vacuum ejector pump create high flow of vacuum suction. The Bi-Active impulse sealing system (top & bottom heating)seals all popular moisture barrier bag materials and anti-static pouches from 30” to 40” (bag opening length).
-

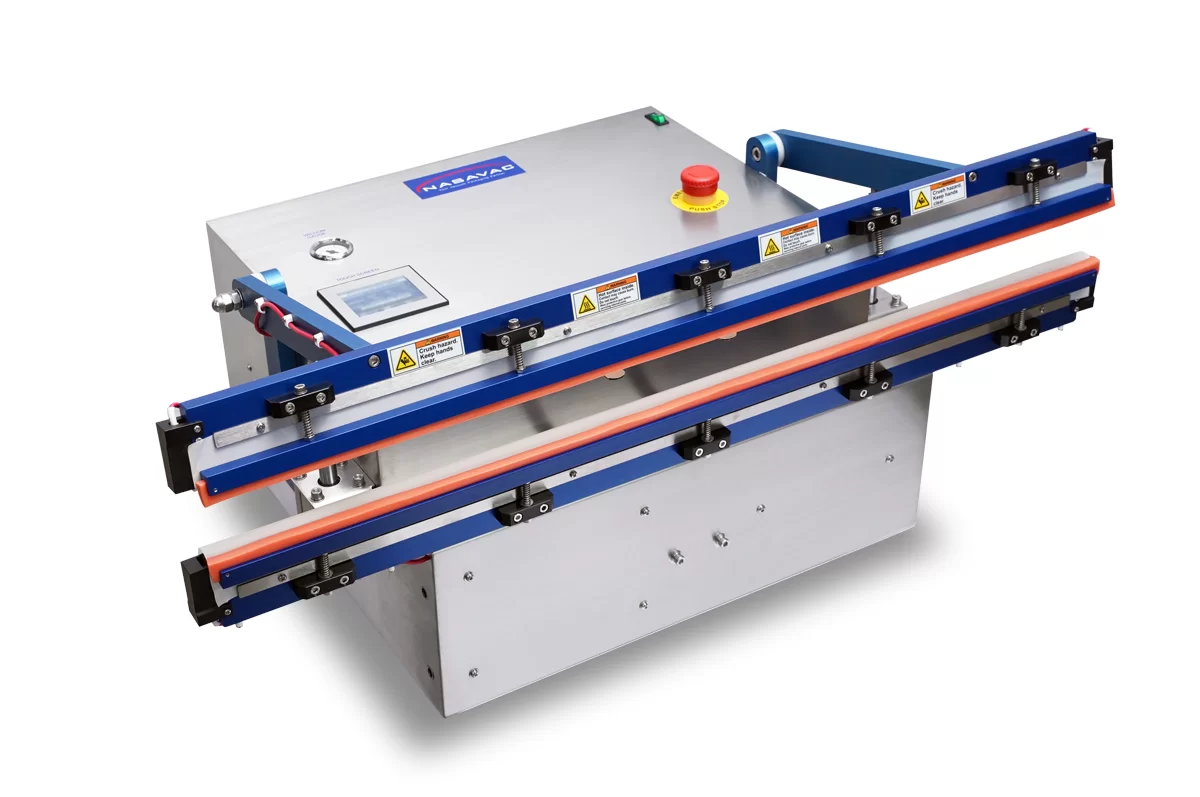

ETG Series
