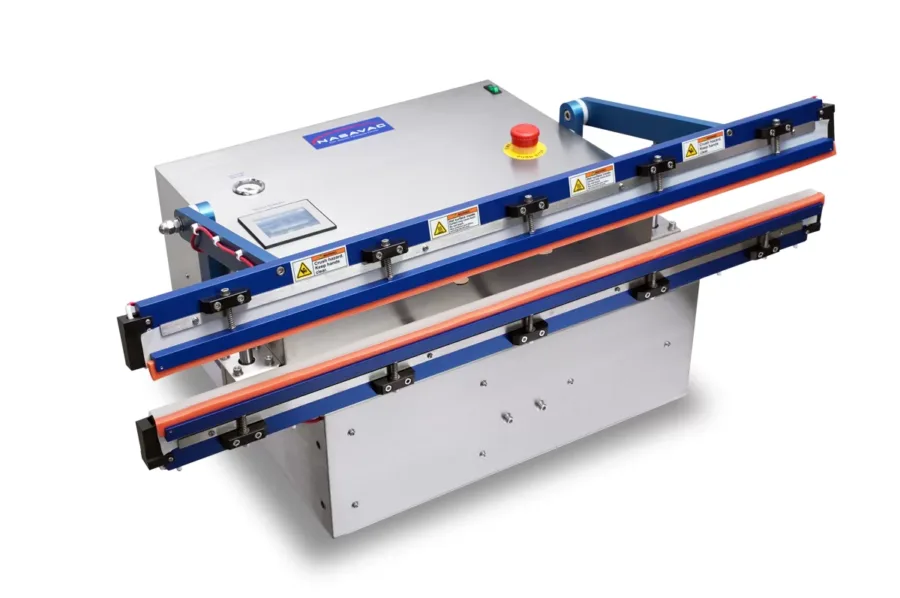

ETG Series

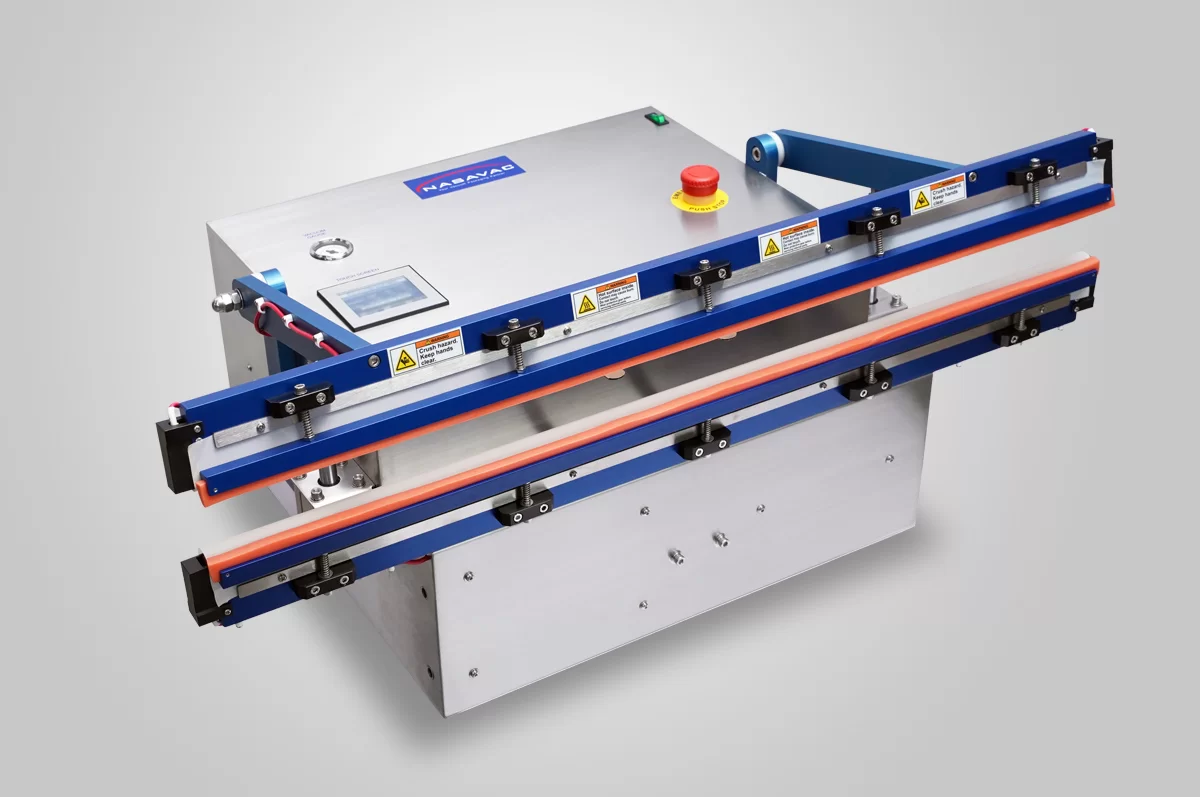

High Performance Nozzle Type Vacuum Sealer
ETG series stainless steel vacuum sealer with gas purge provides Modified Atmosphere Packaging (M.A.P.) solution for electronic components, medical, pharmaceutical, and food industry to extend product storage shelf life. With the built-in touch screen panel (HMI), various gas purge functions are available for selection to suite packaging applications. The Bi-Active impulse sealing system (top & bottom heating) seals all popular moisture barrier bag materials and anti-static pouches from 30” to 40” (bag opening length).
- Compatible for cleanroom application

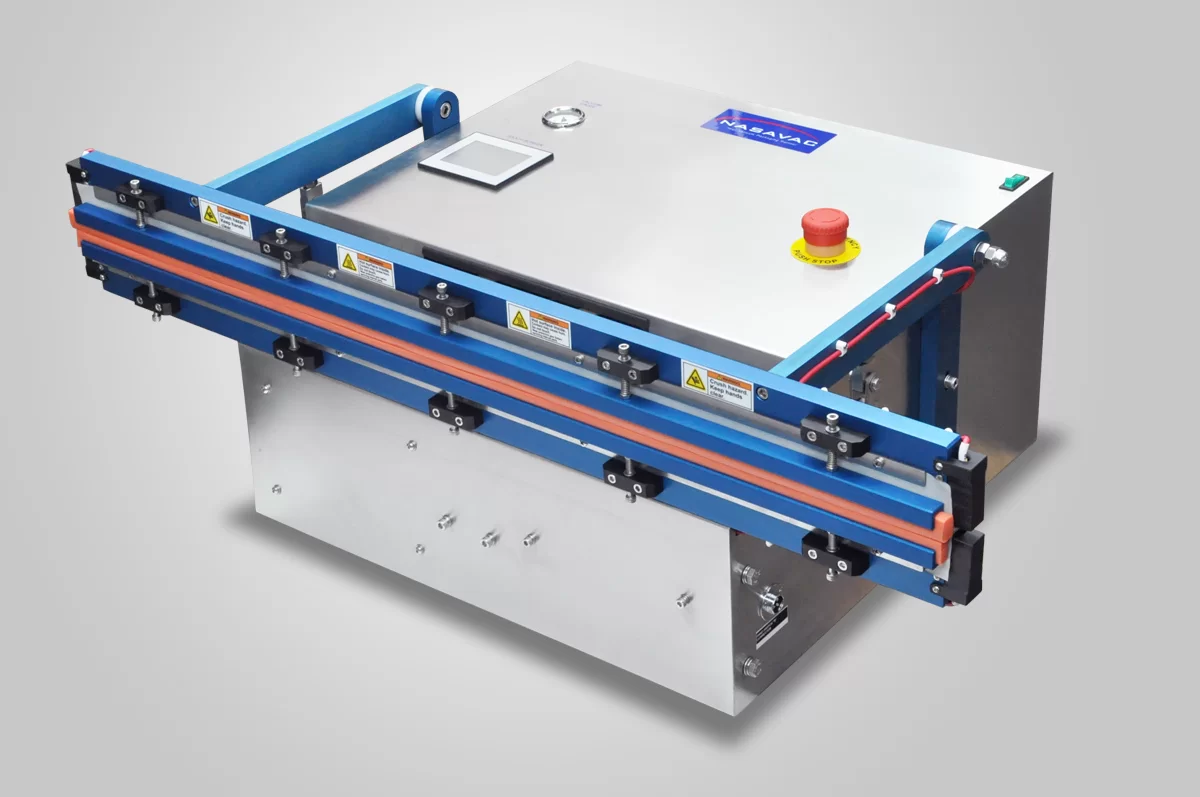

- Stainless steel chassis

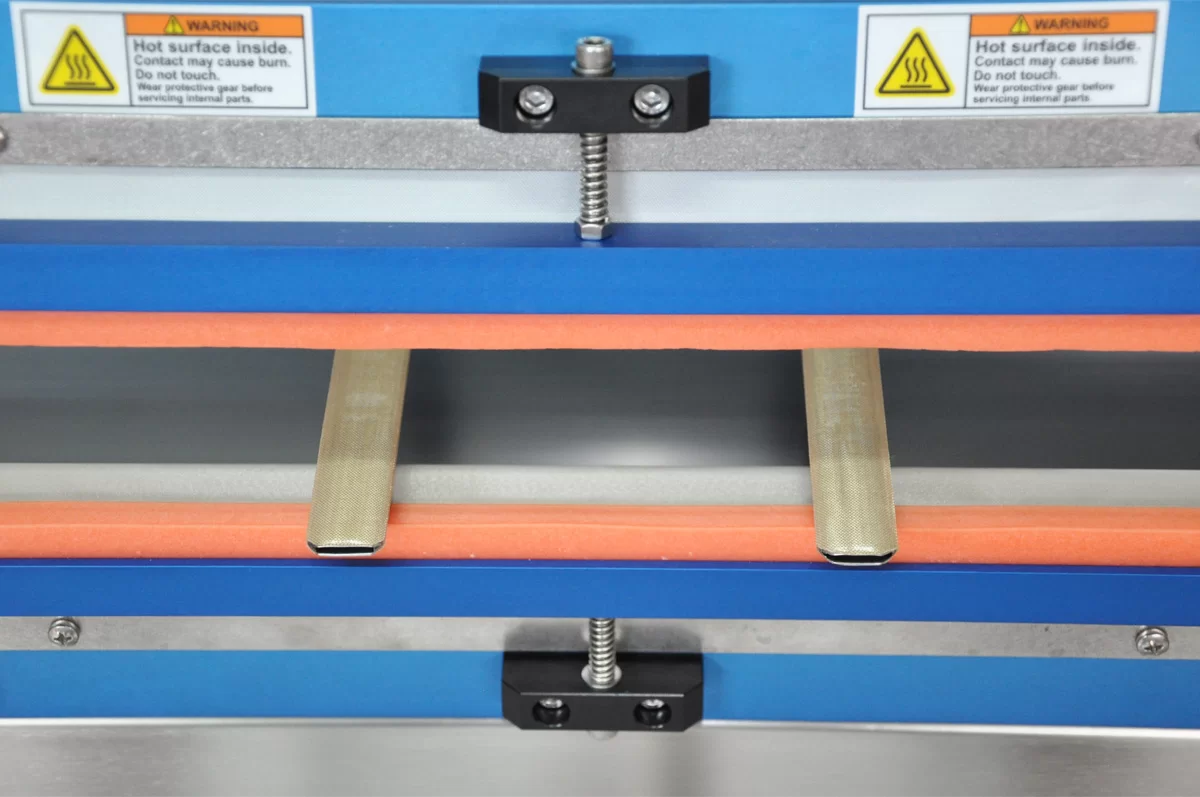

- High flow stainless steel retractable twin nozzles
- Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
- Object / Finger anti-pinch safety system
- Built-in emergency stop push button
- Easy set-up requires only compressed air, standard electrical outlet

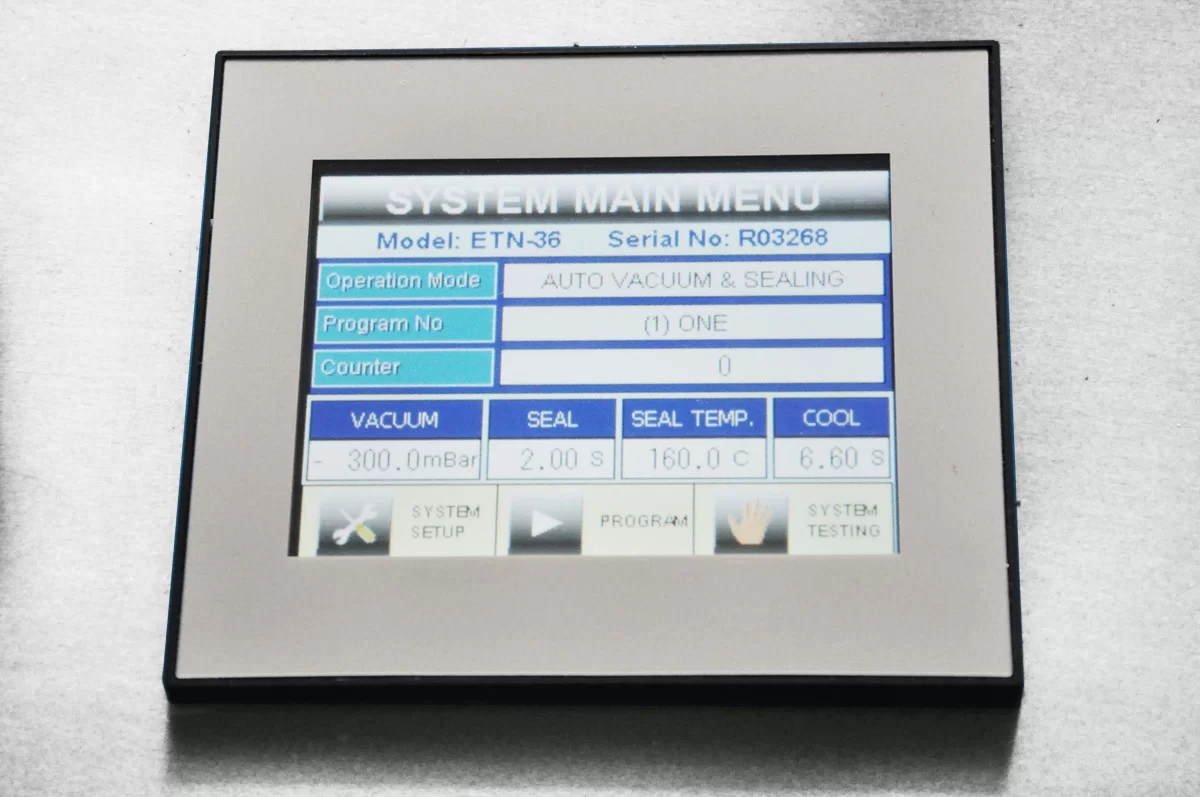

- PLC control & touch screen (HMI) system
10 programmable memory for vacuum time, gas time, heat time and cool time settings - Password protection for setup page
- 5 operation modes: Vac-Gas, Gas-Vac, Multi Stage Vac-Gas or Gas-Vac, Manual Vacuum & Seal Only
- Multiple cycles of gas purging operation (1 to 10 cycles)
- Sealing only mode without nozzles extend
- Packing counter for production monitoring
- Visible and audible alarm
- Vacuum gauge

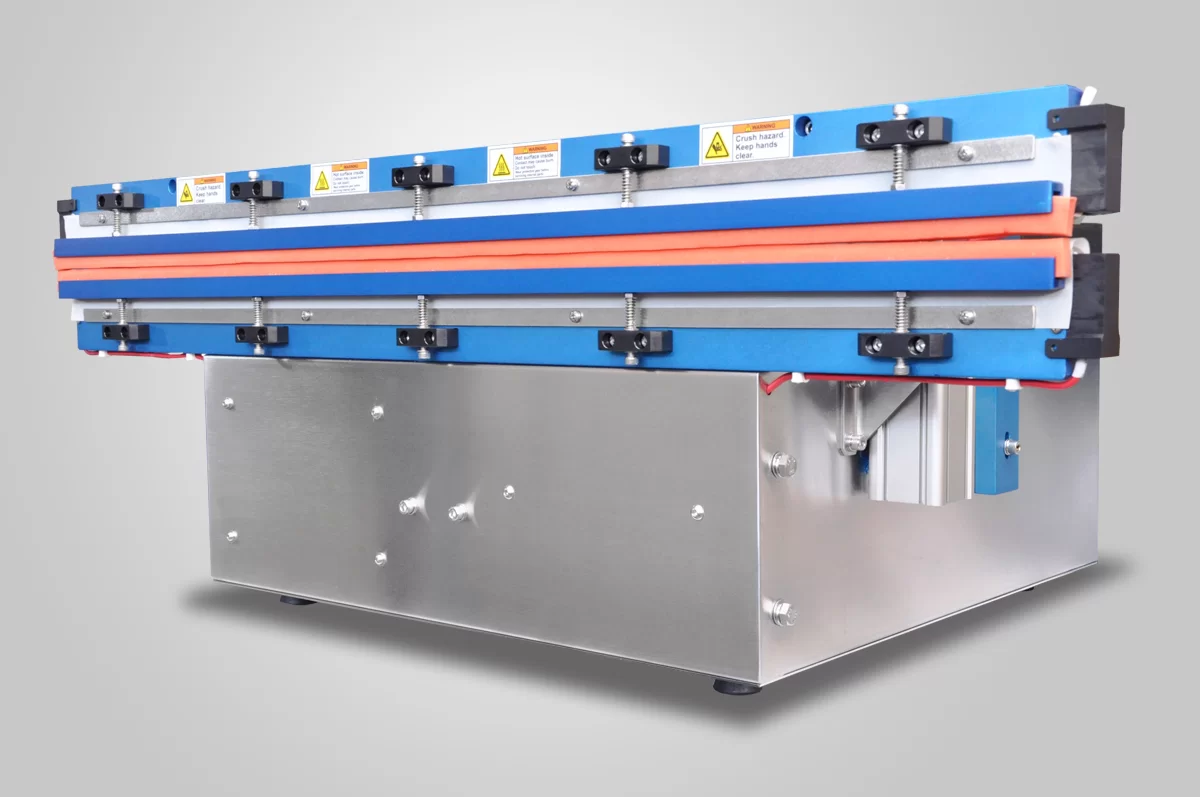

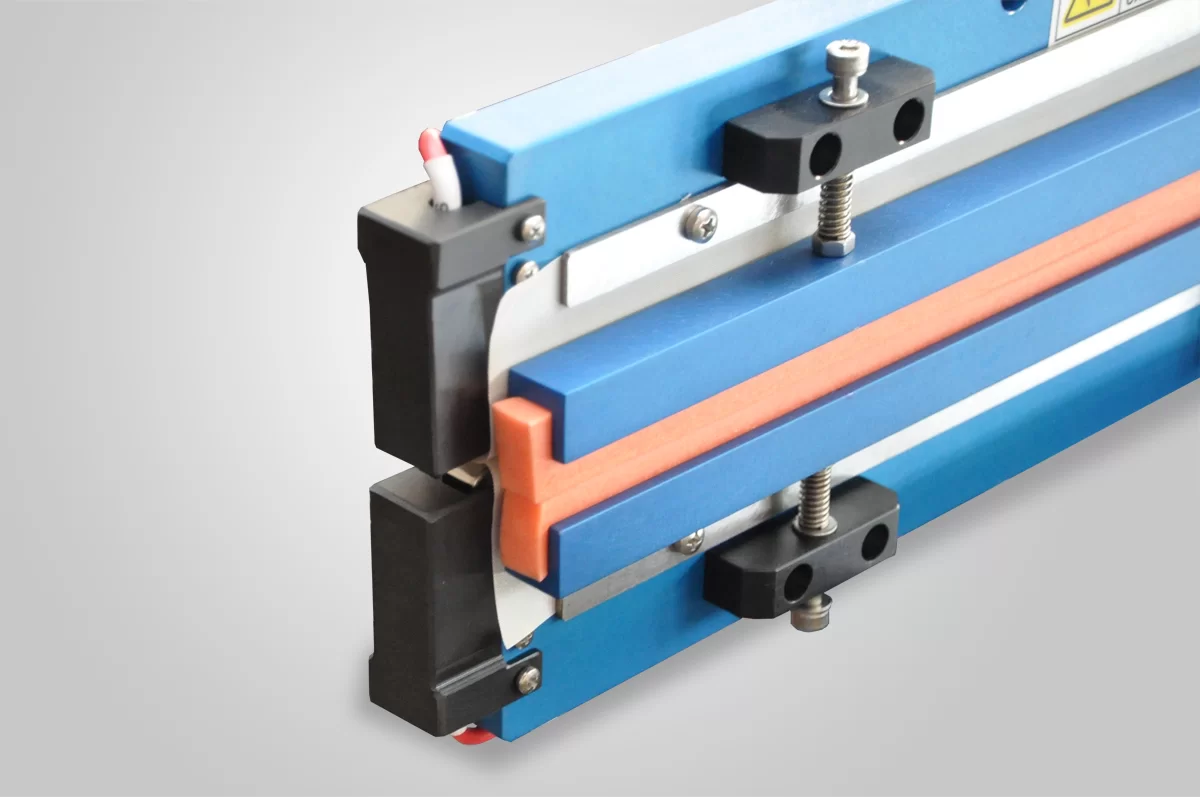

- High performance Bi-Active impulse sealing system (top & bottom heating type)
- Electronic foot pedal switch activated
| Model | ETG-30 | ETG-32 |
|---|---|---|
| Power: | Single Phase AC 110V, 60Hz | |
| Air Requirement: | 87 PSI @ 5 cfm | |
| Gas: | Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2) | |
| Dimensions: | (L) 30.5″ x (W) 20″ x (H) 13.5″ | (L) 32.5″ x (W) 20″ x (H) 13.5″ |
| Seal Dimension: | (L) 30″ x (W) 8mm | (L) 32″ x (W) 8mm |
| Operation Mode: | 5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac, Manual Vacuum & Seal Only | |
| Vacuum: | Flow: 12.94 cfm, Pressure: -27 inHg (Max), Vacuum Ejector Pump | |
| Model | ETG-36 | ETG-40 |
|---|---|---|
| Power: | Single Phase AC 110V, 60Hz | |
| Air Requirement: | 87 PSI @ 5 cfm | |
| Gas: | Flow: 5.85 cfm, Pressure: 60 PSI (Max), Nitrogen (N2), Argon (Ar) or Carbon Dioxide (CO2) | |
| Dimensions: | (L) 36.5″ x (W) 20″ x (H) 13.5″ | (L) 40.5″ x (W) 20″ x (H) 13.5″ |
| Seal Dimension: | (L) 36″ x (W) 8mm | (L) 40″ x (W) 8mm |
| Operation Mode: | 5 Operation Modes: Vac-Gas, Gas-Vac, Vac-Gas-Vac-Gas, Gas-Vac-Gas-Vac, Manual Vacuum & Seal Only | |
| Vacuum: | Flow: 12.94 cfm, Pressure: -27 inHg (Max), Vacuum Ejector Pump | |

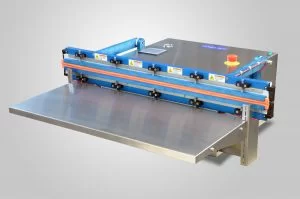

- Stainless Steel Working Platform
- Vacuum Filter
- Nozzle Length Extension

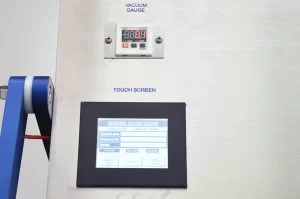

- Vacuum Pressure Control Option
- Two-Hand Tie Down System
- Bag Stretcher
- Utilizing In-House Vacuum and Nitrogen Air Line
- Temperature Controlled Impulse Sealing System
- Dry Vacuum Pump
- Validation System

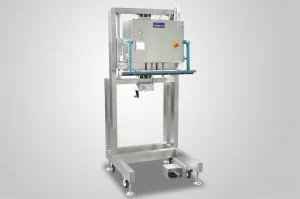

- Vertical Stand
- 10mm Sealing Width

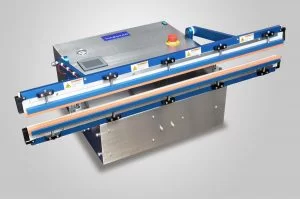

- Other Sealing Length
- Other Voltage Configuration (220V/240V AC or 100V AC)
IC Tray Pack with Gas Flushing
Tape & Reel Vacuum Pack with Gas Flushing
