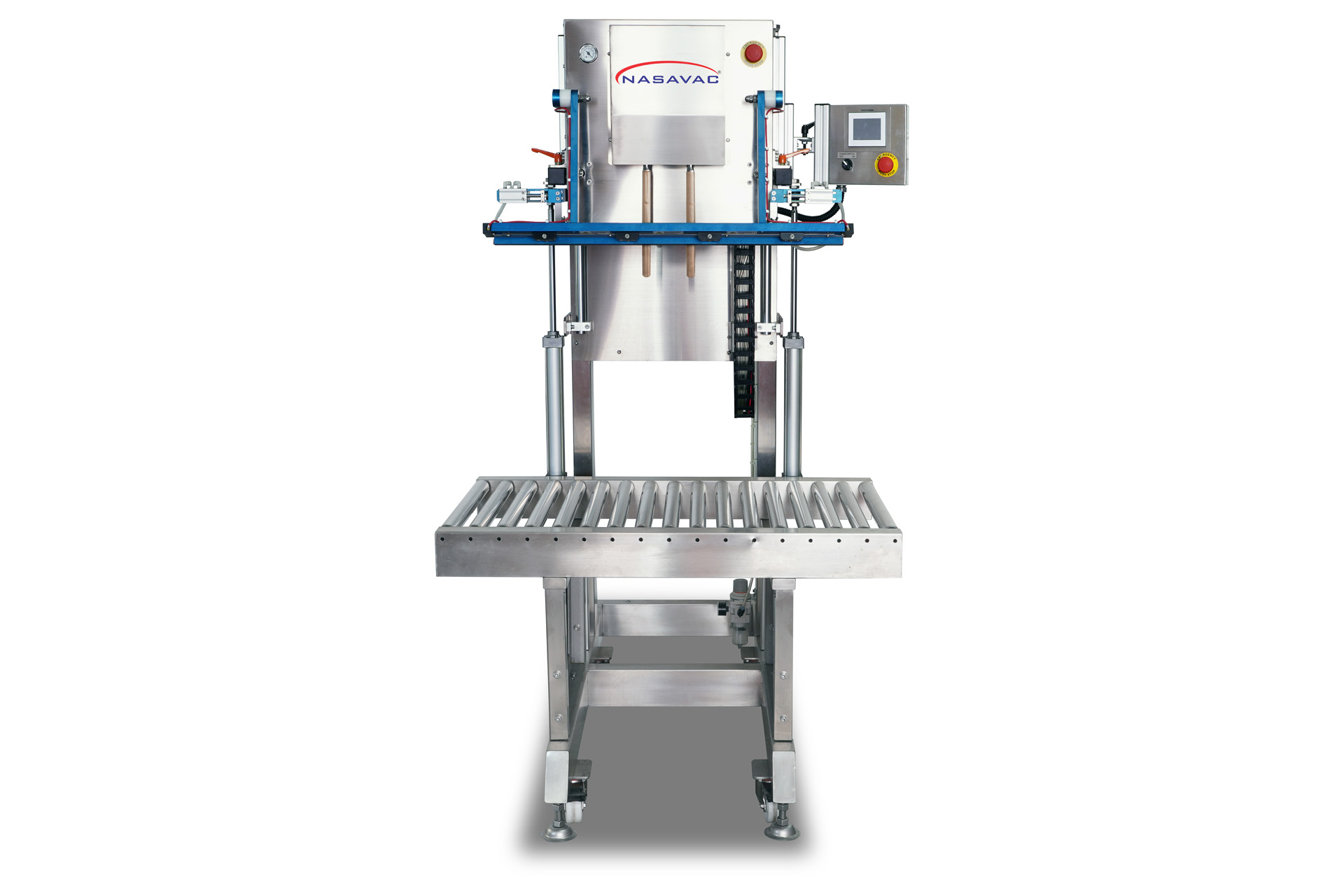

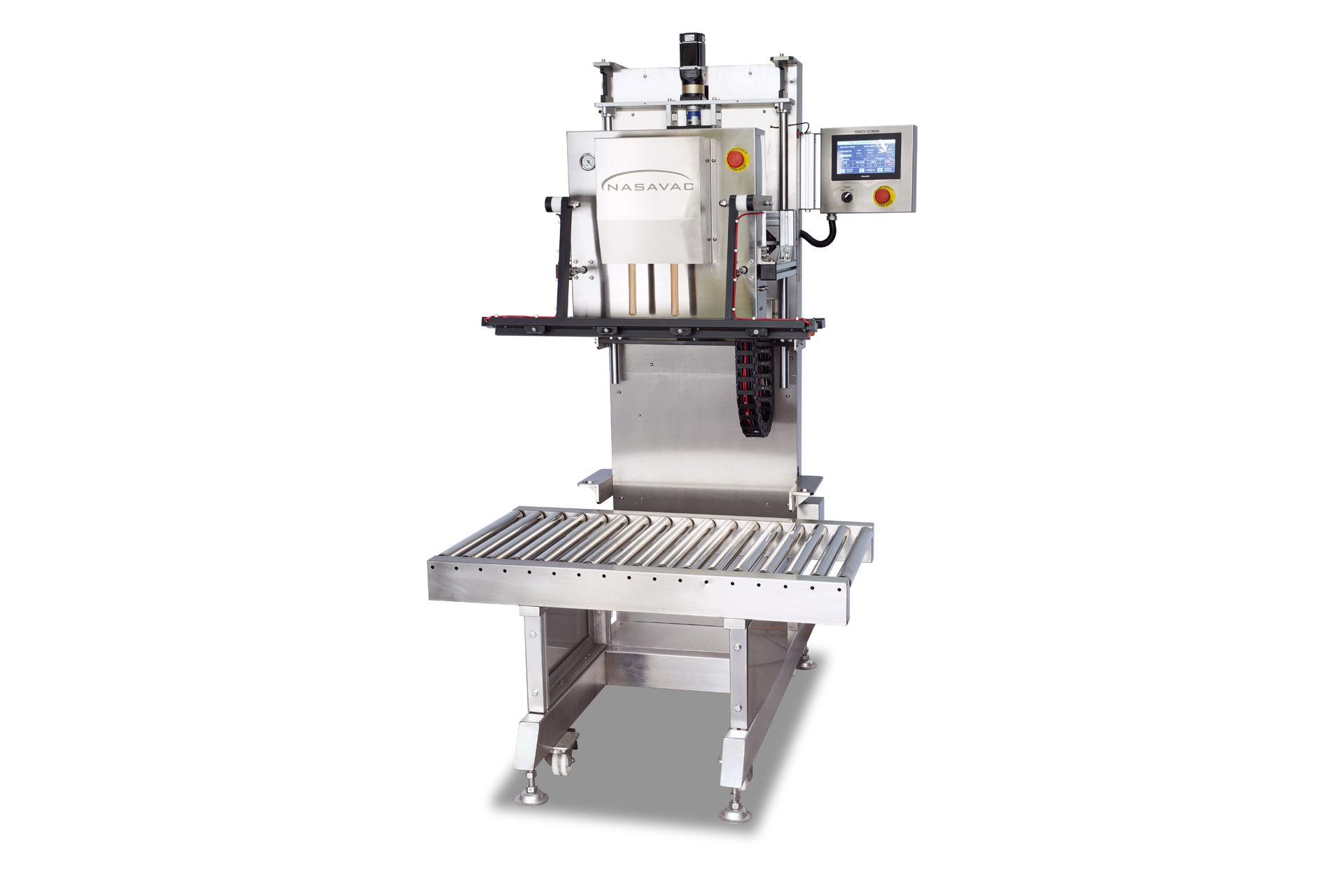

EXV Series

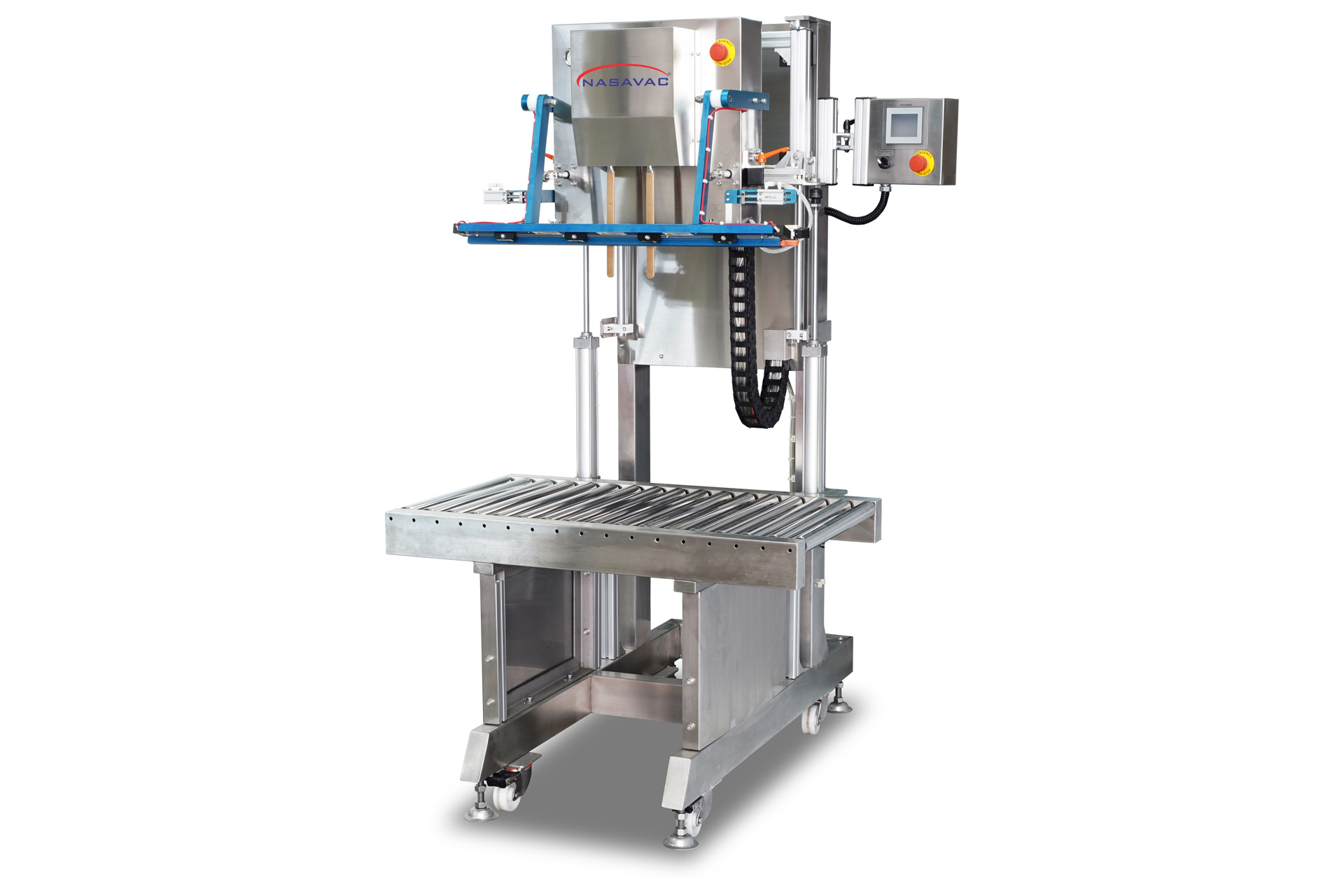

Vertical Type Nozzle Type Vacuum Sealer
EXV series vertical type vacuum sealer is ideal for bag in a box type packing, granule, large volume products where a conveyor or supporting platform is applied. It’s opened head design gives easy access to bag positioning. The vacuum sealer is powered by PLC controller and Touch Screen Panel (HMI) control system for precise settings and user-friendly operations. EXV series vacuum sealer is suitable for modified atmosphere packaging bulk products packaging application by extending the shelf life. The Bi-Active impulse sealing system seals all popular moisture barrier bag materials and laminated films.
- Compatible for cleanroom application

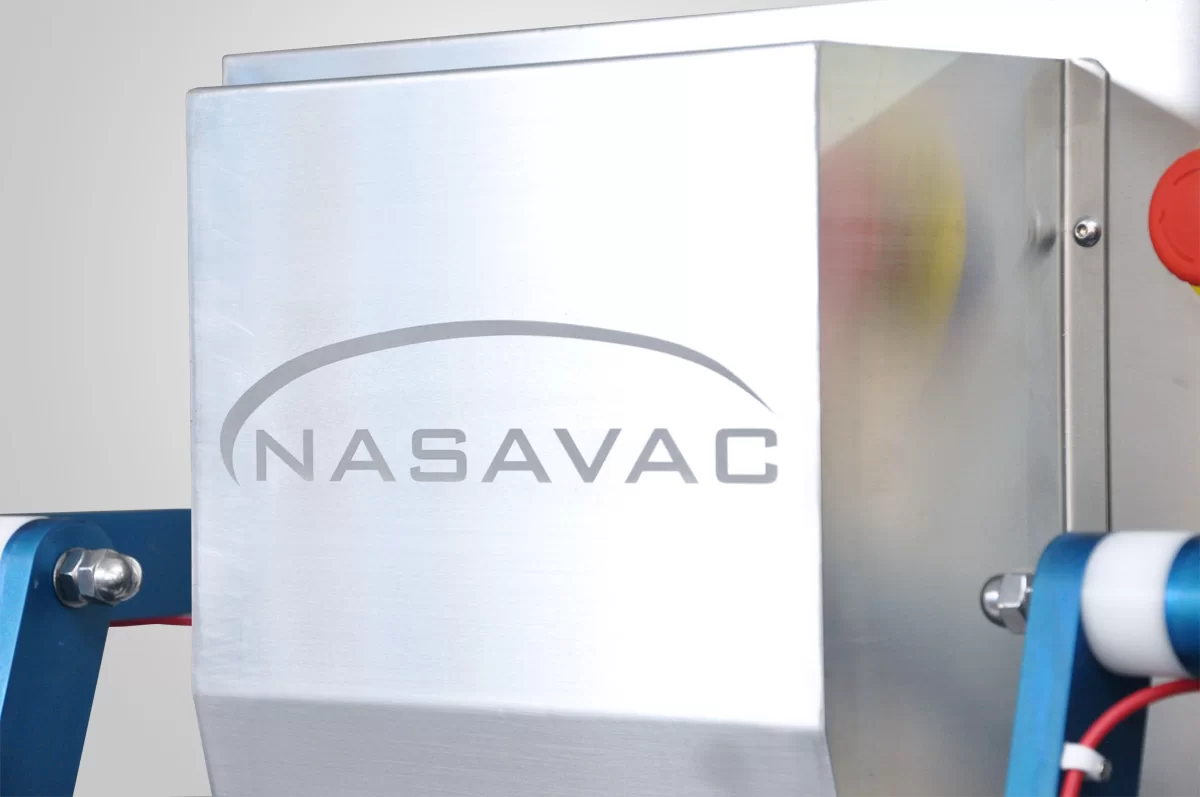

- Stainless steel chassis

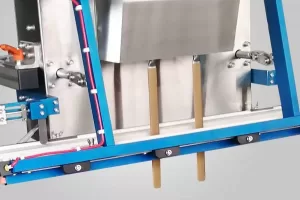

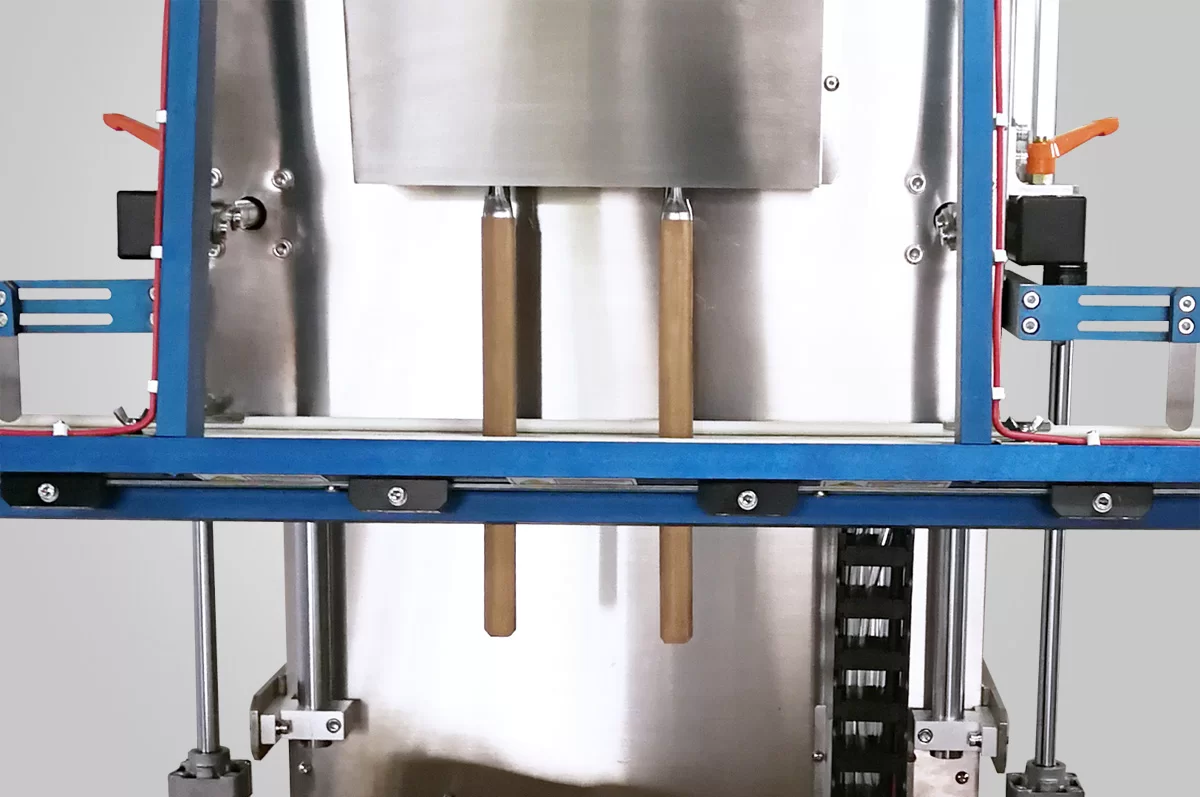

- High flow stainless steel retractable twin nozzles
- Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
- Object / Finger anti-pinch safety system
- Built-in emergency stop push button
- Easy set-up requires only compressed air, standard electrical outlet

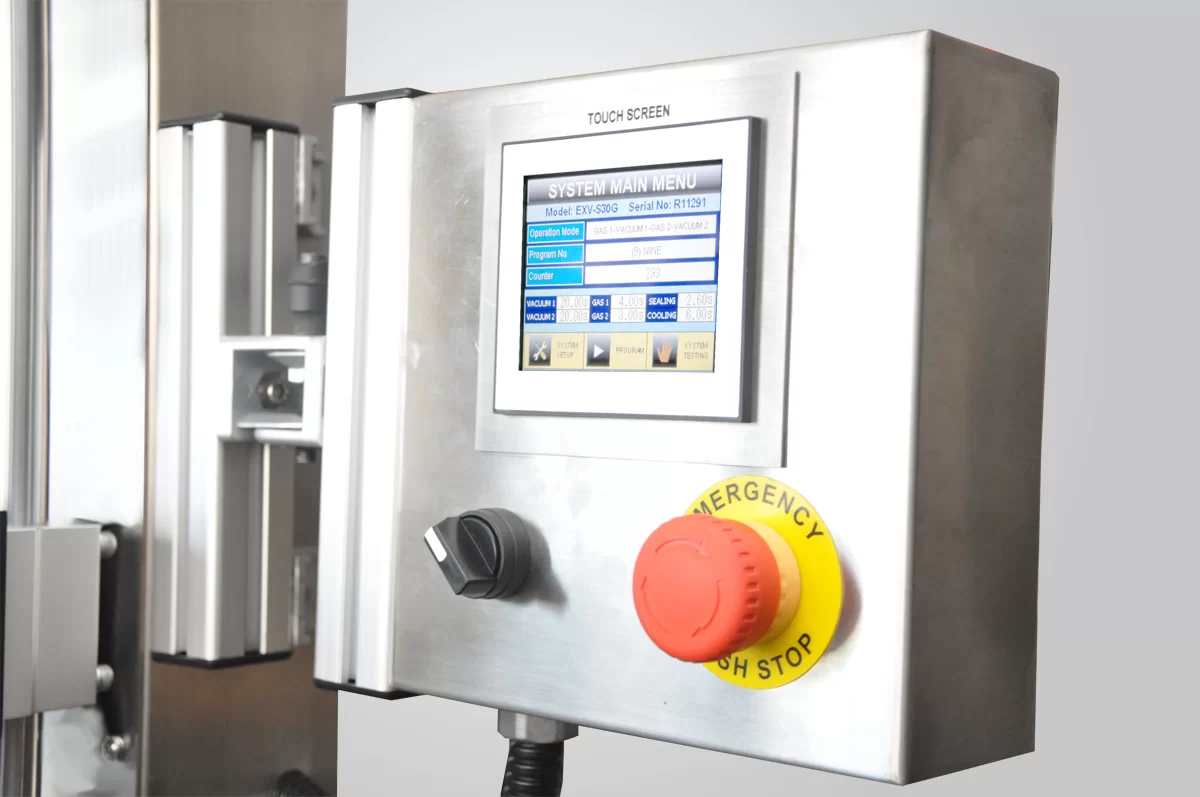

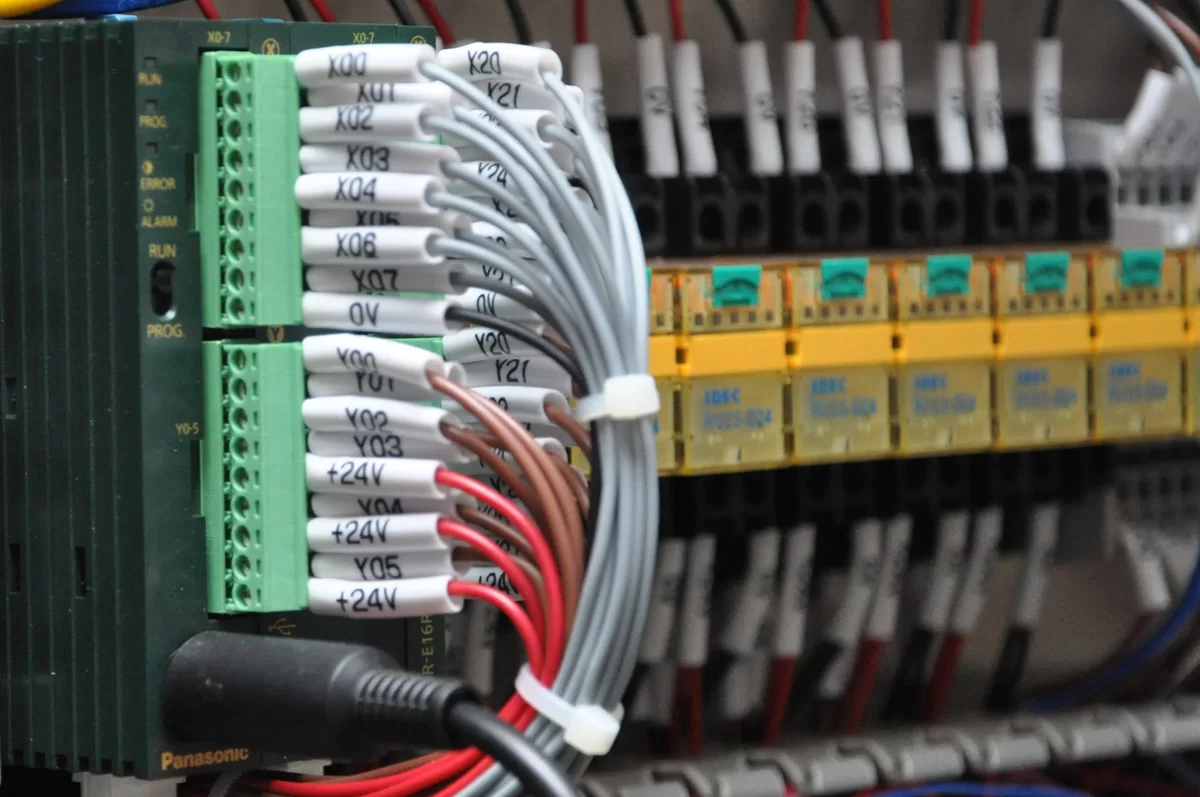

- PLC control & touch screen (HMI) system
- 10 programmable memory for vacuum time, gas time, heat time and cool time settings
- Password protection for setup page

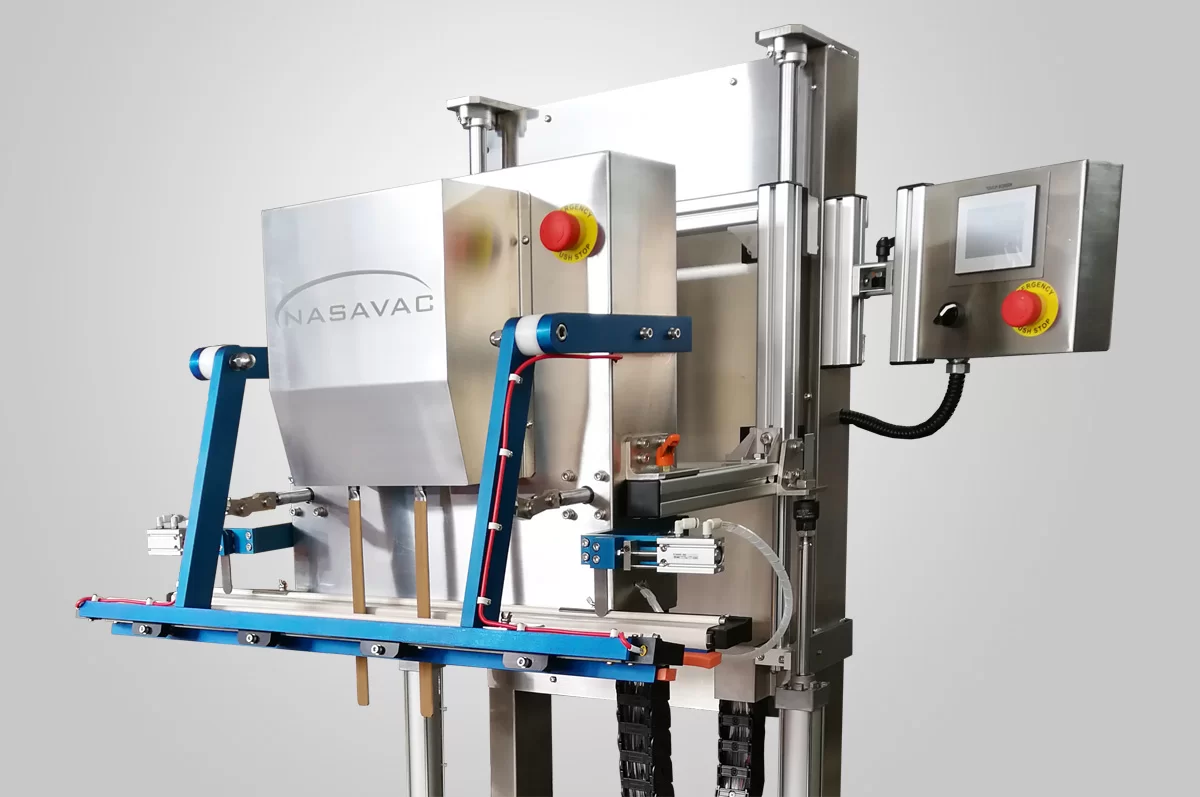

- Descending sealing console prevents heavy bags from being lifted off conveyor during vacuum cycle
- 6 operation modes: Vacuum-Gas, Gas-Vacuum, Vacuum Only, Gas Purging Only, Manual Vacuum & Seal Only
- Multiple cycles of gas purging operation (1 to 10 cycles)
- Sealing only mode without nozzles extend
- Packing counter for production monitoring
- Visible and audible alarm

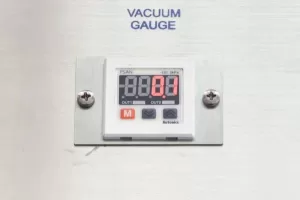

- Vacuum gauge
- High performance Bi-Active impulse sealing system (top & bottom heating type)
- Electronic foot pedal switch activated
| Model | EXV-25 | EXV-30 | EXV-35 |
|---|---|---|---|
| Power: | |||
| Air Requirement: | |||
| Gas: | |||
| Dimensions: | (L) 50″ x (W) 42″ x (H) 76″ | (L) 55″ x (W) 42″ x (H) 76″ | (L) 60″ x (W) 42″ x (H) 76″ |
| Seal Dimension: | (L) 25″ x (W) 8mm | (L) 30″ x (W) 8mm | (L) 35″ x (W) 8mm |
| Operation Mode: | |||
| Vacuum: | |||

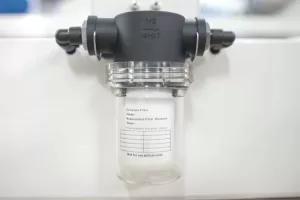

- Vacuum Filter
- Nozzle Length Extension
- Vacuum Pressure Control Option

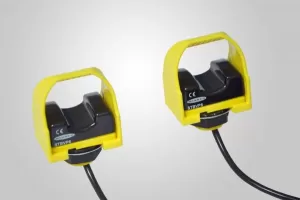

- Two-Hand Tie Down System

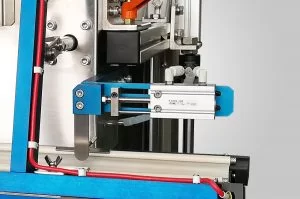

- Bag Stretcher
- Utilizing In-House Vacuum and Nitrogen Air Line
- Temperature Controlled Impulse Sealing System
- Dry Vacuum Pump

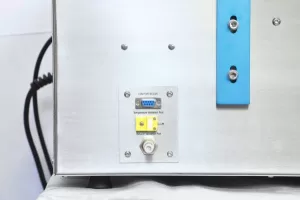

- Validation System
- 10mm Sealing Width
- Other Sealing Length
- Other Voltage Configuration (220V/240V AC or 100V AC)
Coming soon
