MPT Series

Validatable Medical Impulse Sealer

MPT series validatable medical impulse sealer is a PLC controlled with touch panel HMI interface and available in 20″, 25″ and 30″ sealing length. It is built with external verification ports for ease of calibration.

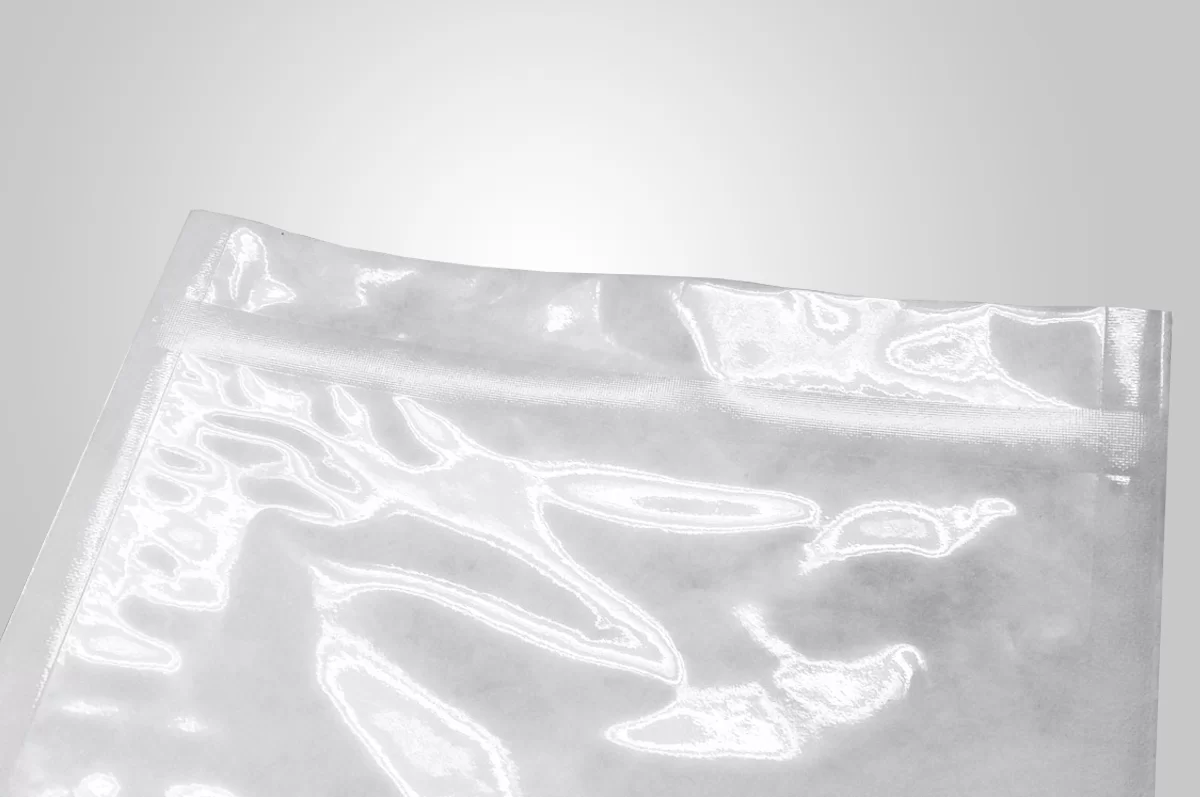

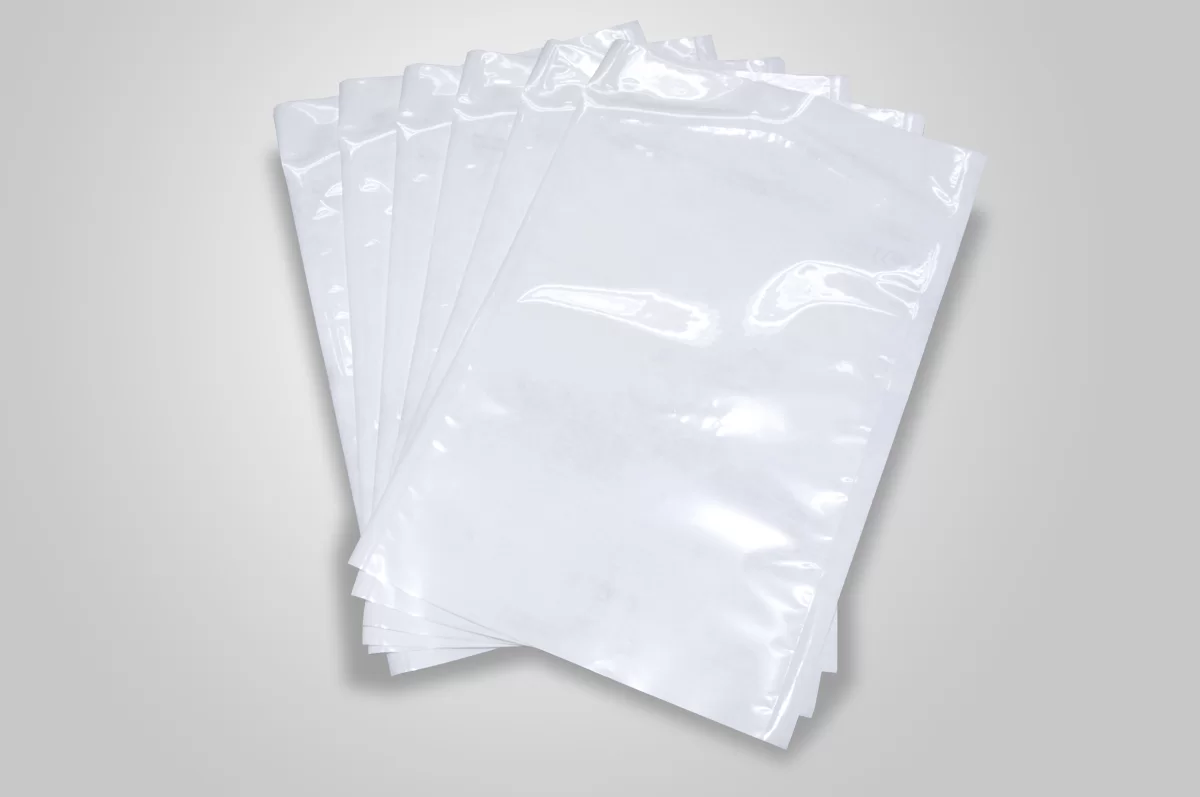

Variable sealing timer, sealing temperature , sealing pressure and cooling time ensure precise control over to heat seal pouch. With an outstanding PID controlled impulse sealing system, you can have confidence in sealing a wide range of materials such as Tyvek® medical microbial barrier pouch and laminated films.

Features

Compatible for cleanroom application
Mild steel powder coating chassis

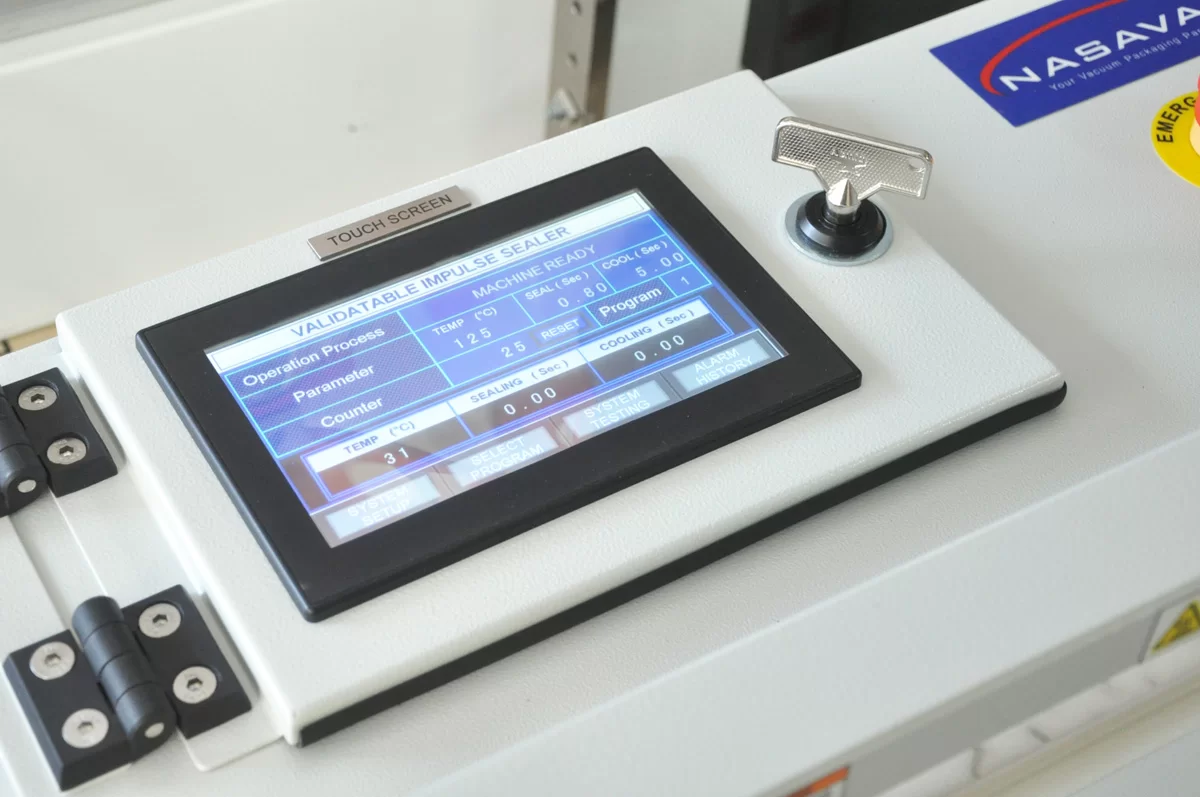

Touch screen displays seal temperature, seal time, cool time, seal pressure (Analog regulator with digital readout of pressure)
Password protection for perimeter setting and recipes
Object / Finger anti-pinch safety system
Built-in emergency stop push button
Easy set-up requires only compressed air, standard electrical outlet

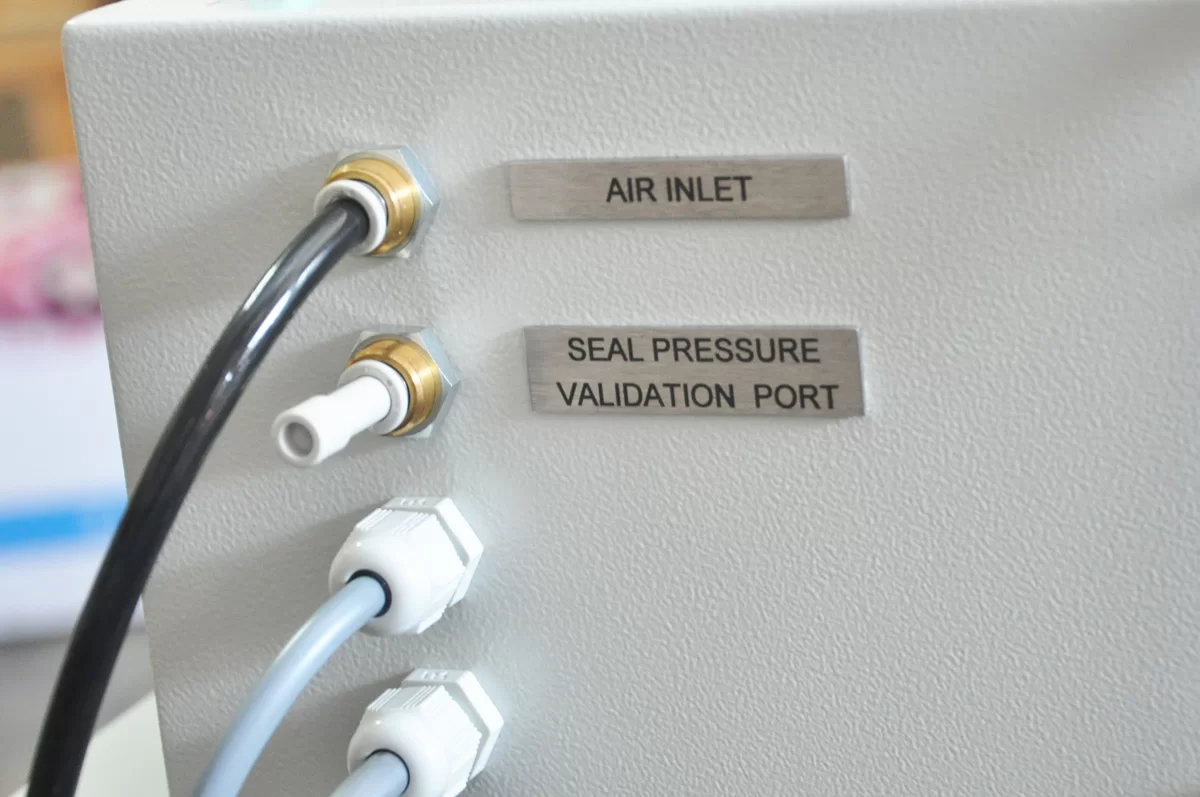

External validation port for seal temperature, seal pressure, seal time, cool time
10 programmable recipe for seal temperature, seal time, heat time and cool time settings
Data logging for seal temperature, seal time, cool time, seal pressure
Visible and audible alarms
Packing counter for production monitoring
High performance impulse sealing system with PID control
Electronic foot pedal switch activated

Technical Specifications

Model	MPT-200	MPT-250	MPT-300
Power:	Single Phase AC 110V, 60Hz
Air Requirement:	82 PSI @ 5 cfm
Dimensions:	(L) 31 ½” x (W) 23″ x (H) 13″	(L) 36 ½” x (W) 23″ x (H) 13″	(L) 41 ½” x (W) 23″ x (H) 13″
Seal Dimension:	(L) 20″ x (W) 10mm	(L) 25″ x (W) 10mm	(L) 30″ x (W) 10mm

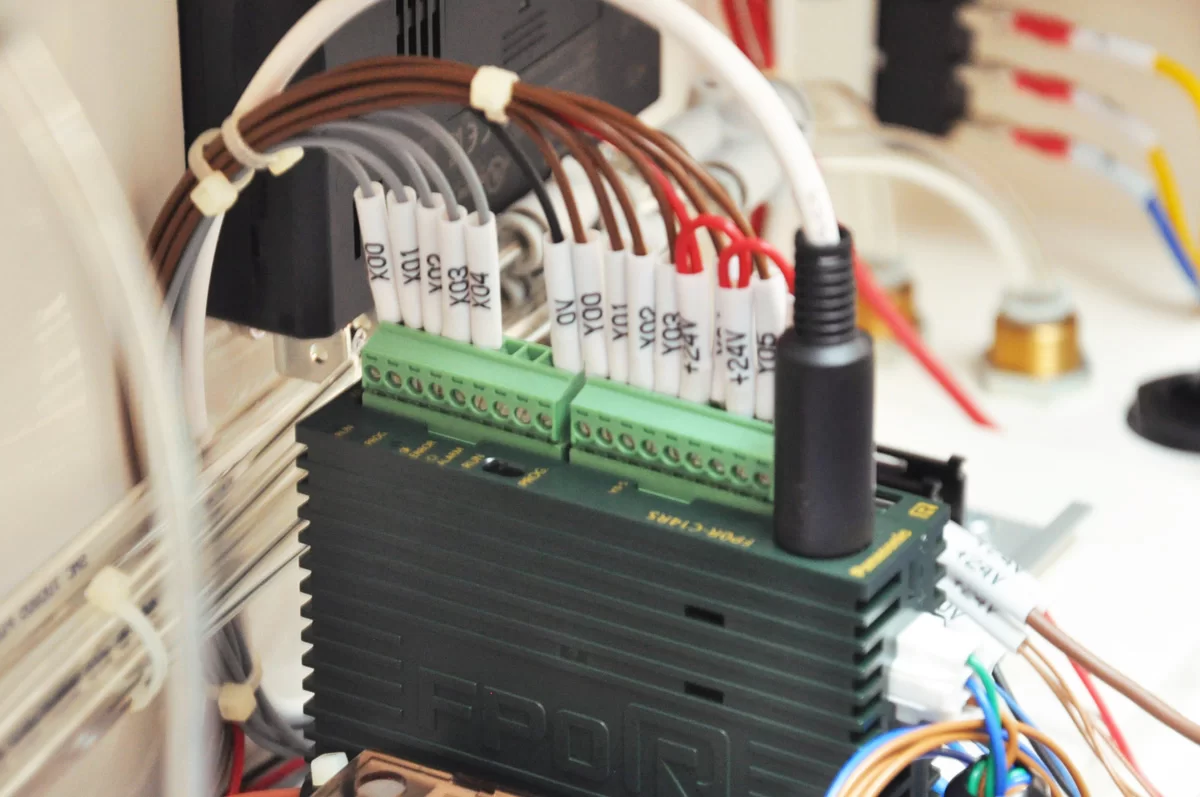

Control System:	PLC & Touch Screen Control
Recipe:	10 Programmable Recipes
Validation Port:	Seal Temperature, Seal Pressure, Timers
Data Logging:	Seal Temperature, Seal Pressure, Seal Time, Cool Time
