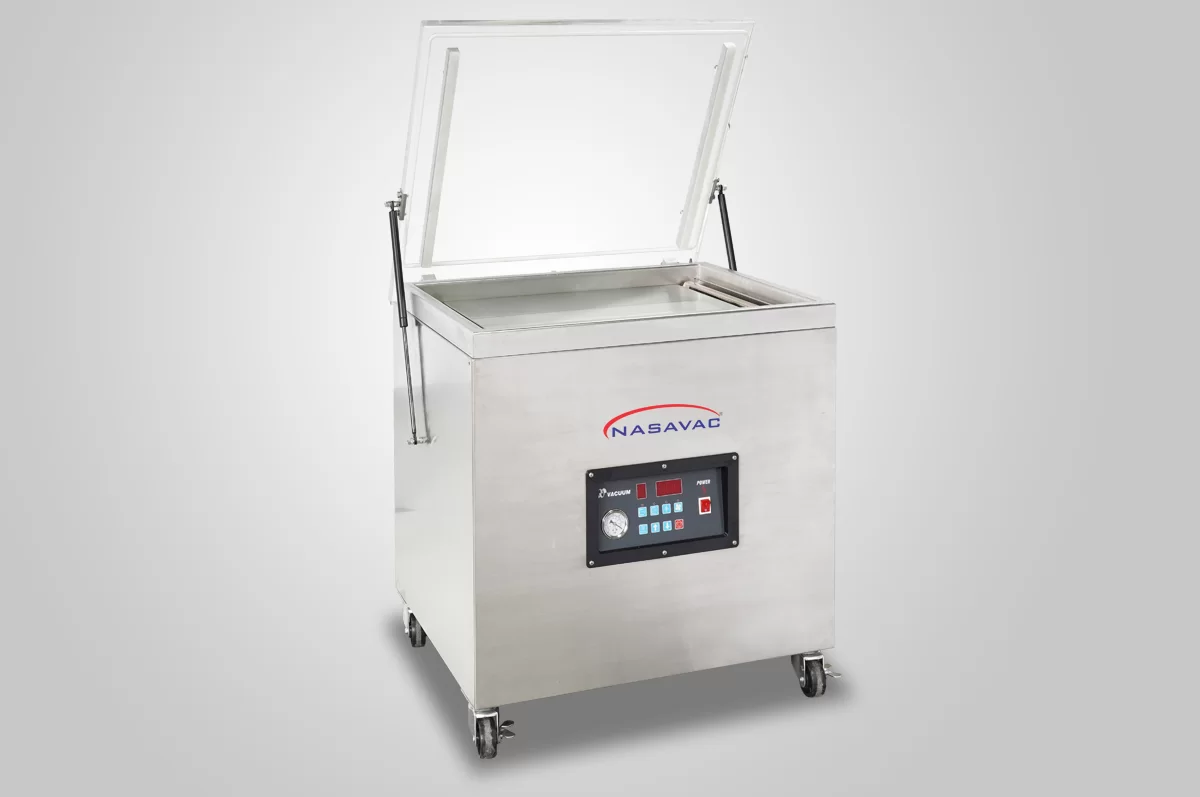

Neptune 28

Mid-Size Single Chamber Vacuum Sealer

NEPTUNE 28 – floor standing single chamber vacuum sealer has digital control, twin sealing bar, and optional soft air to prevent damage to delicate products. The transparent glass lid assist in vacuum packaging process visualization. The control system is powered by micro-controller with 10 programmable memory settings.

Features

Stainless steel chassis
High performance impulse sealing system
Aluminum alloy sealing bar with bladder activated sealing
Robust design for tough & wet environment
Splash proof control panel
Powered by micro-controller with 10 programmable memory settings
Emergency reset system
Transparent glass lid
Easy sealing element and Teflon tape replacement
Easy cleaning
Packing counter for production monitoring
Powered by oil lubricated rotary vane vacuum pump

Technical Specifications

Model	NEPTUNE 28	NEPTUNE 28S	NEPTUNE 28L
Power:	Single Phase AC 110V, 60Hz
Dimensions:	(L) 33 ½” x (W) 28 ¾” x (H) 34 ¼”
Machine Weight:	320lb
Chamber Height:	6″ (Effective Depth= 5 ¾”) or 9 ¾” (Effective Depth= 9″) Either one to select upon placing order

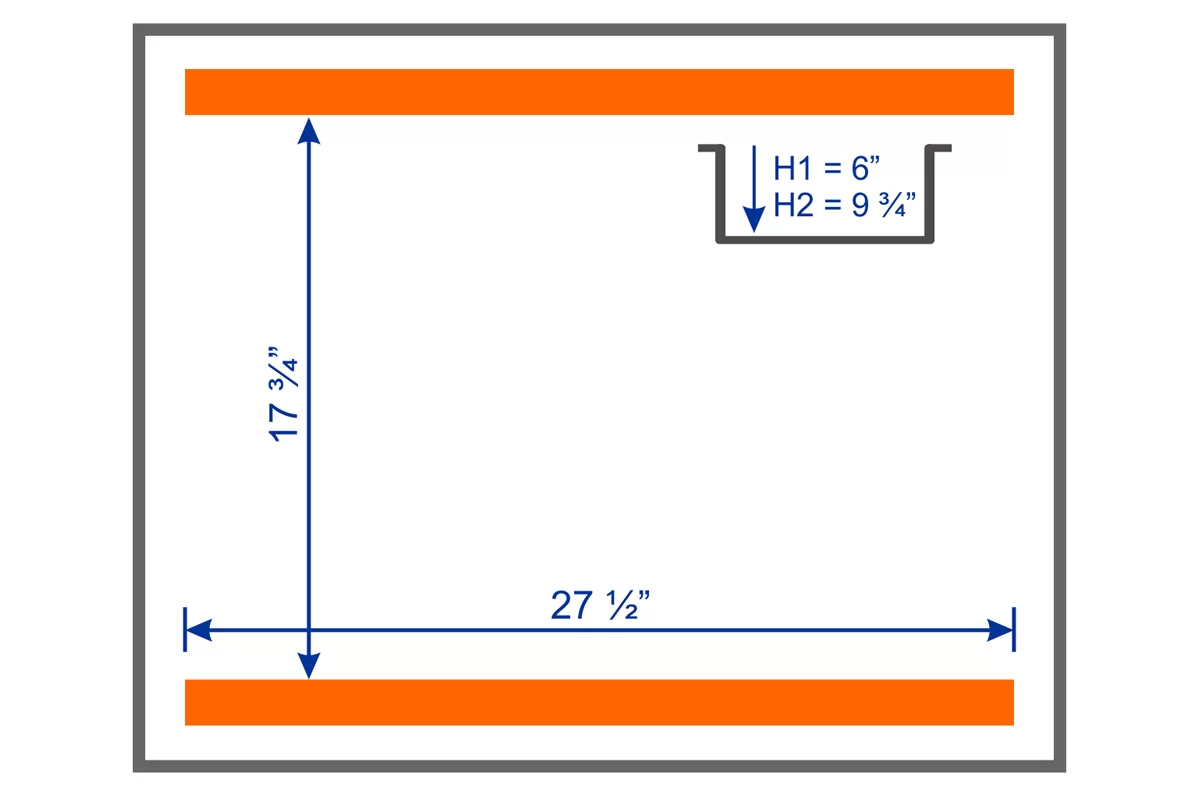

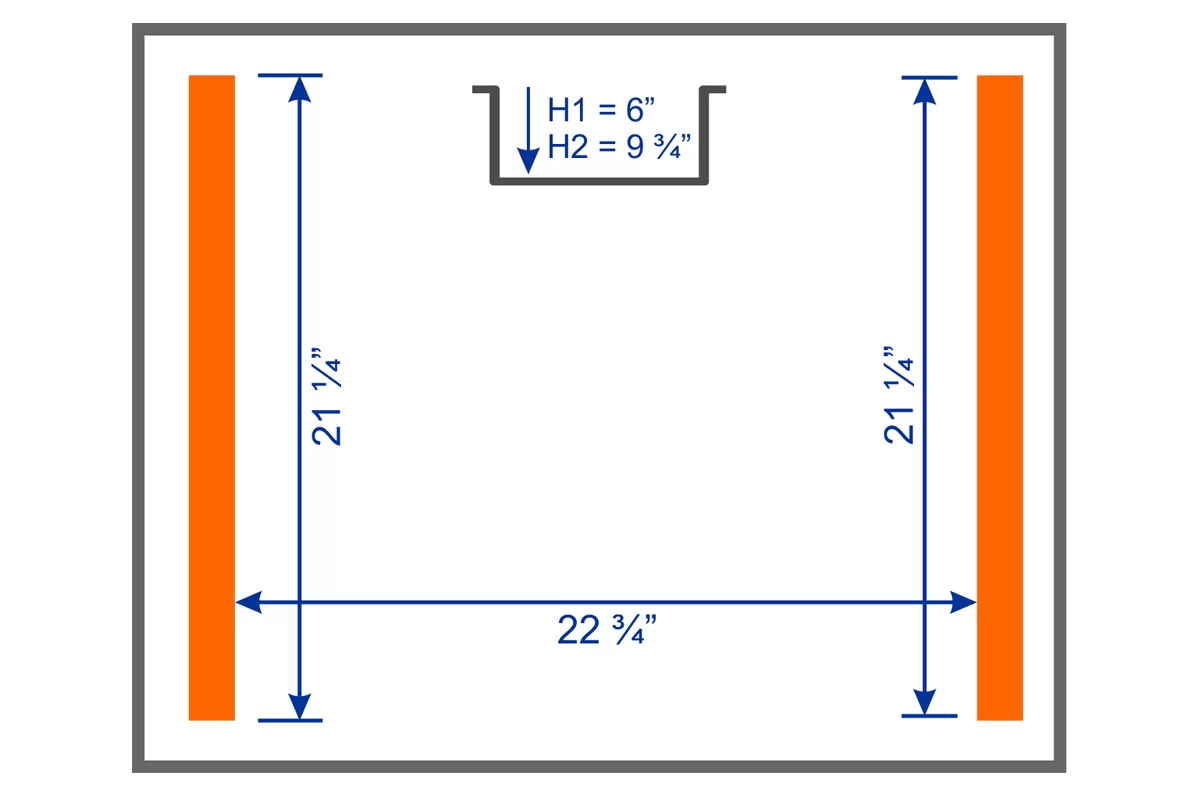

Chamber Dimension:	(L) 27 ½” x (W) 17 ¾” x (H) 6″	(L) 22 ¾” x (W) 21 ¼” x (H) 6″	(L) 26″ x (W) 21 ¼” x (H) 6″
Sealing Bar Configuration:	Front & Back: Seal Bar Distance = 17 ¾”	Left & Right: Seal Bar Distance = 22 ¾”	L-Shape
Sealing Length:	2 x 27 ½”	2 x 21 ¼”	1 x 21 ¼” and 1 x 25 ½”
Sealing Width:	3.5mm x 2 Lines Flat Heating Element
Maximum Vacuum:	-29 inHg
Vacuum:	20 m³/H 1 HP Oil Lubricated Rotary Vane Vacuum Pump
