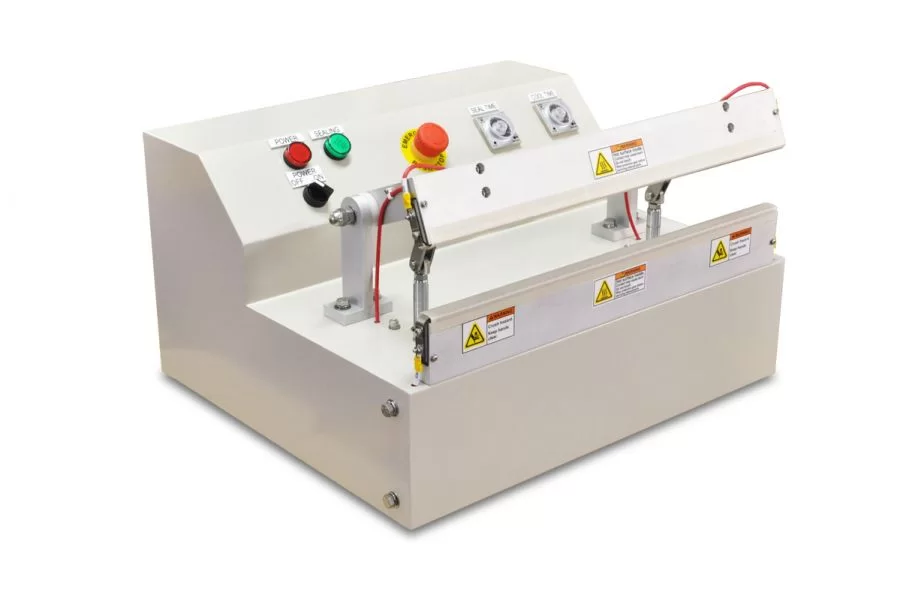

SPB Series

Bi-Active Impulse Sealer

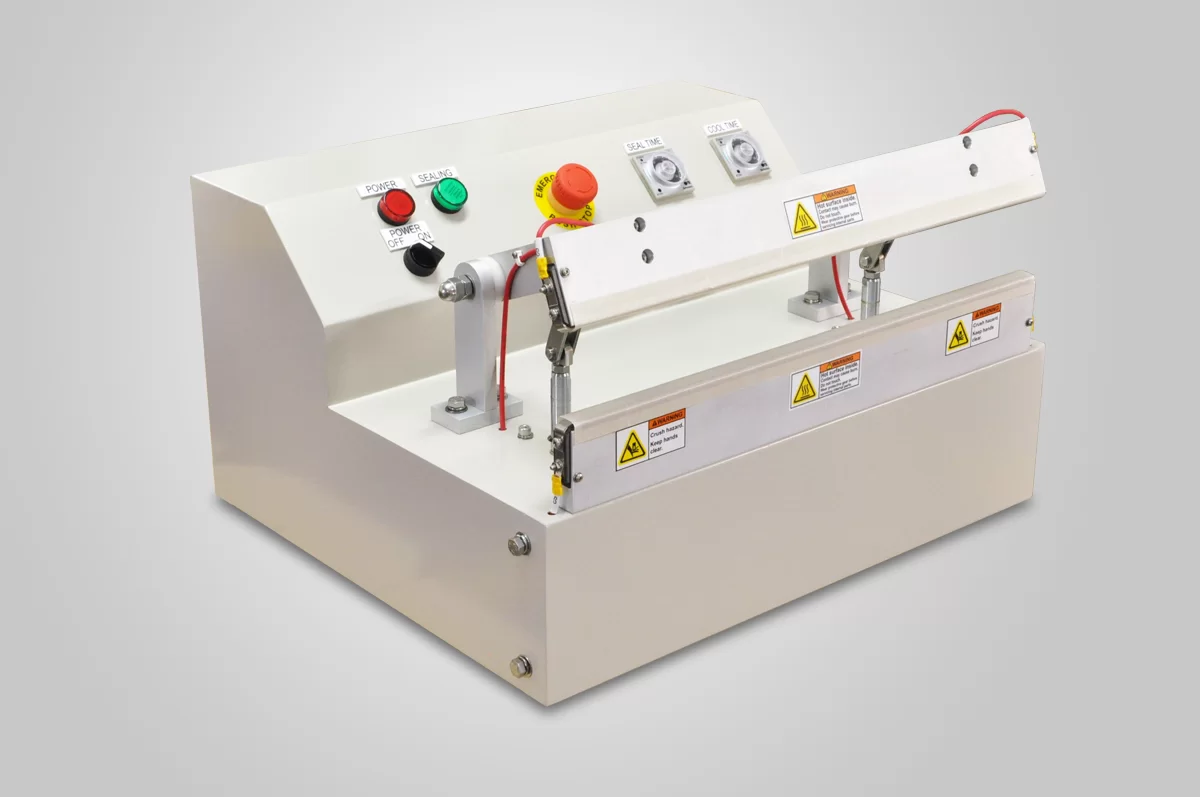

The SPB series bi-active impulse sealer is pneumatically operated and available from 20″ to 40″ seal length. The bi-active (both side heating) provides sealer with high sealing capacity and closing pressure for thick bags, center sealed bags, gusseted bags. A sealing timer and cooling timer ensure precise control over the amount of impulse heat time and dwell time applied to your package. With an outstanding level of heat sealing control system you can have confidence in sealing a wide range of materials from LDPE, HDPE, PP, to laminted film such as PA (Nylon/LDPE), OPP and aluminum film.

Features

Cleanroom compatible
Works with all popular microbial & moisture barrier bag materials
Works perfectly with retort pouch
Mild steel powder coating chassis
User friendly and maintenance free operation
Object / Finger anti-pinch safety system
Built-in emergency stop push button

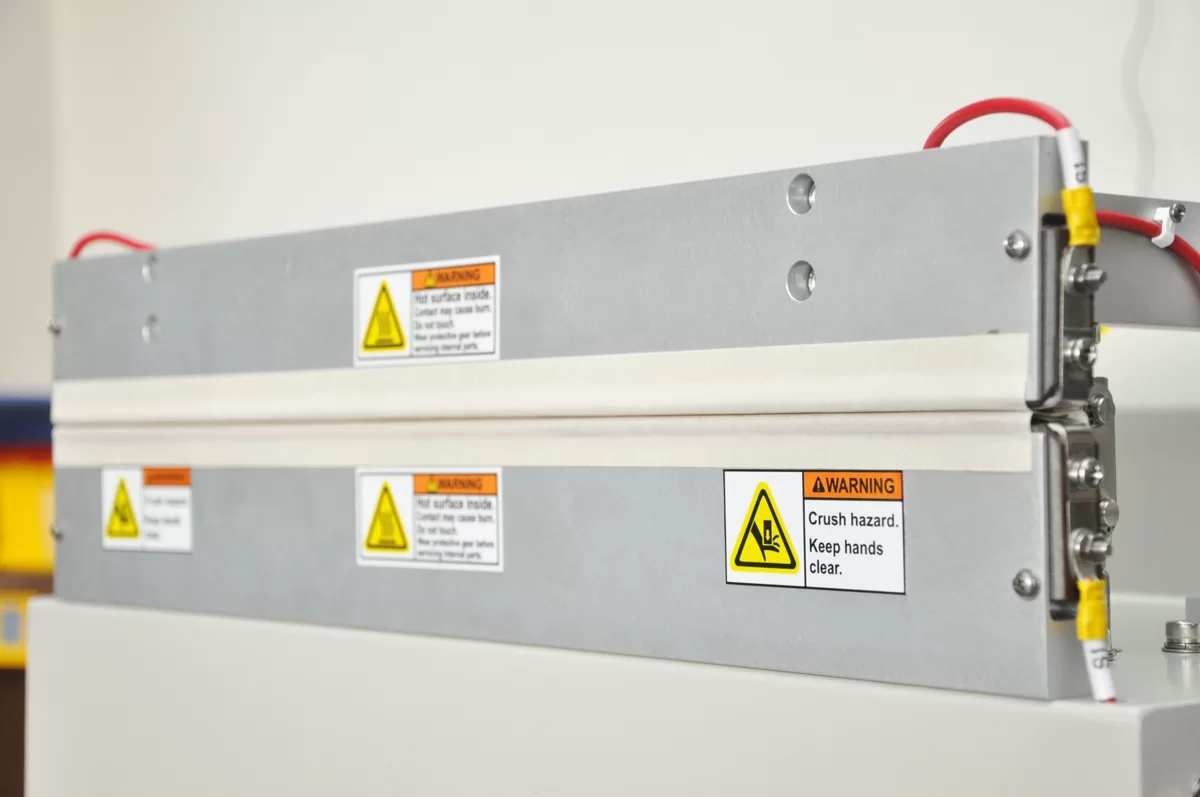

Bi-active seal jaws (both side heating)
High performance impulse sealing system
Aluminum alloy seal jaws for robust operation
Easy set-up requires only compressed air and standard electrical outlet
Analog timers for sealing and cooling time
Easy heating element & Teflon sheet replacement
Suitable to seal polyethylene, polypropylene and thin laminates film
Electronic foot pedal switch activated

Technical Specifications

Model	SPB-20	SPB-30	SPB-40
Power:	Single Phase AC 110V, 60Hz
Air Requirement:	82 PSI @ 5 cfm
Dimensions:	(L) 20 ½” x (W) 19″ x (H) 12 ¼”	(L) 30 ½” x (W) 19″ x (H) 12 ¼”	(L) 40 ½” x (W) 19″ x (H) 12 ¼”
Seal Dimension:	(L) 20″ x (W) 8mm	(L) 30″ x (W) 8mm	(L) 40″ x (W) 8mm
Sealing System:	Bi-Active Impulse Sealing System (Both Side Heating)
Control System:	Analog timers system
Impulse Power:	1200 W	1600 W	2000 W
