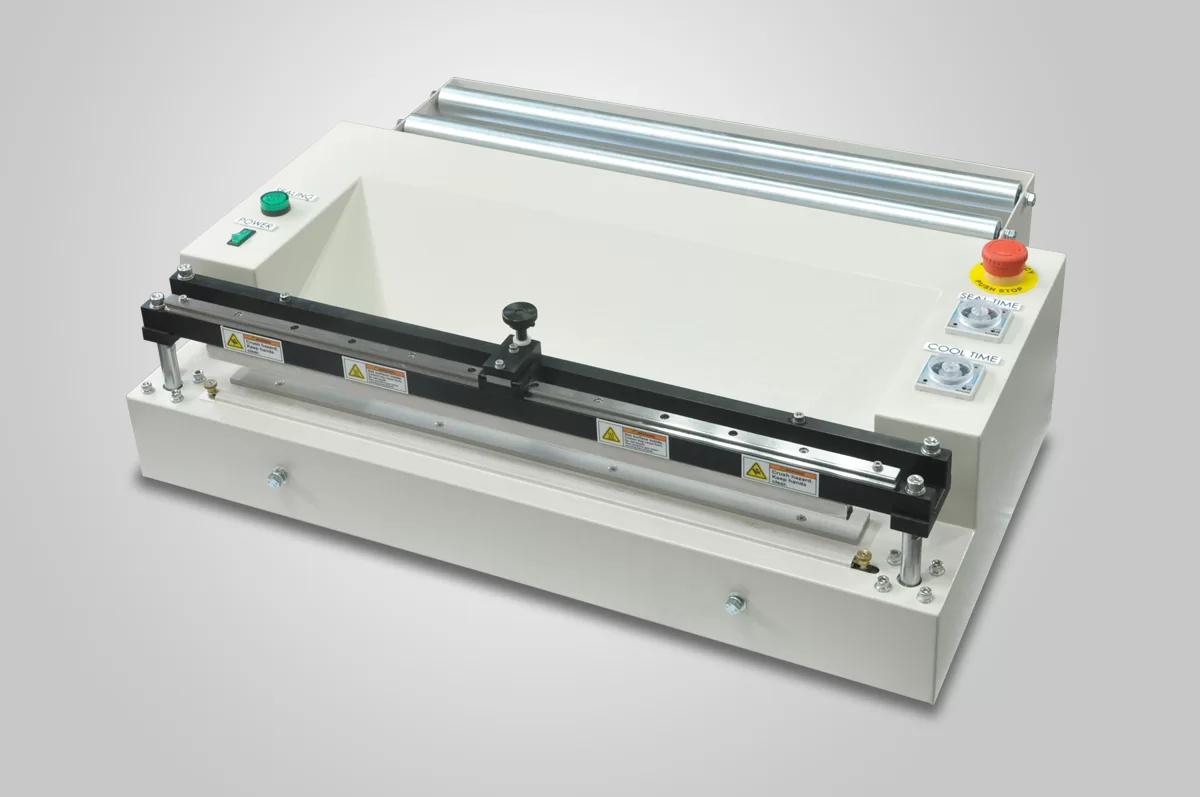

SPT Series

Impulse Sealer With Shielded Cutting Device

The SPT series impulse sealer is pneumatically operated and complete with different sized models and options. The sealer works with pre-made bags as well as with tubular film. When working with tubular film, it can produce various length of bags by using the built-in shielded cutting device. Hands free operation provides faster and accurate impulse sealing. High performance impulse sealing system to meet different daily operation.

The working cycle of the sealer can easily be started by pushing down the seal bar using a foot pedal switch. Once started, the seal bar remain closed throughout the sealing and cooling cycle and then automatically open, ready to make the next seal.

Features

Cleanroom compatible
Mild steel powder coating chassis

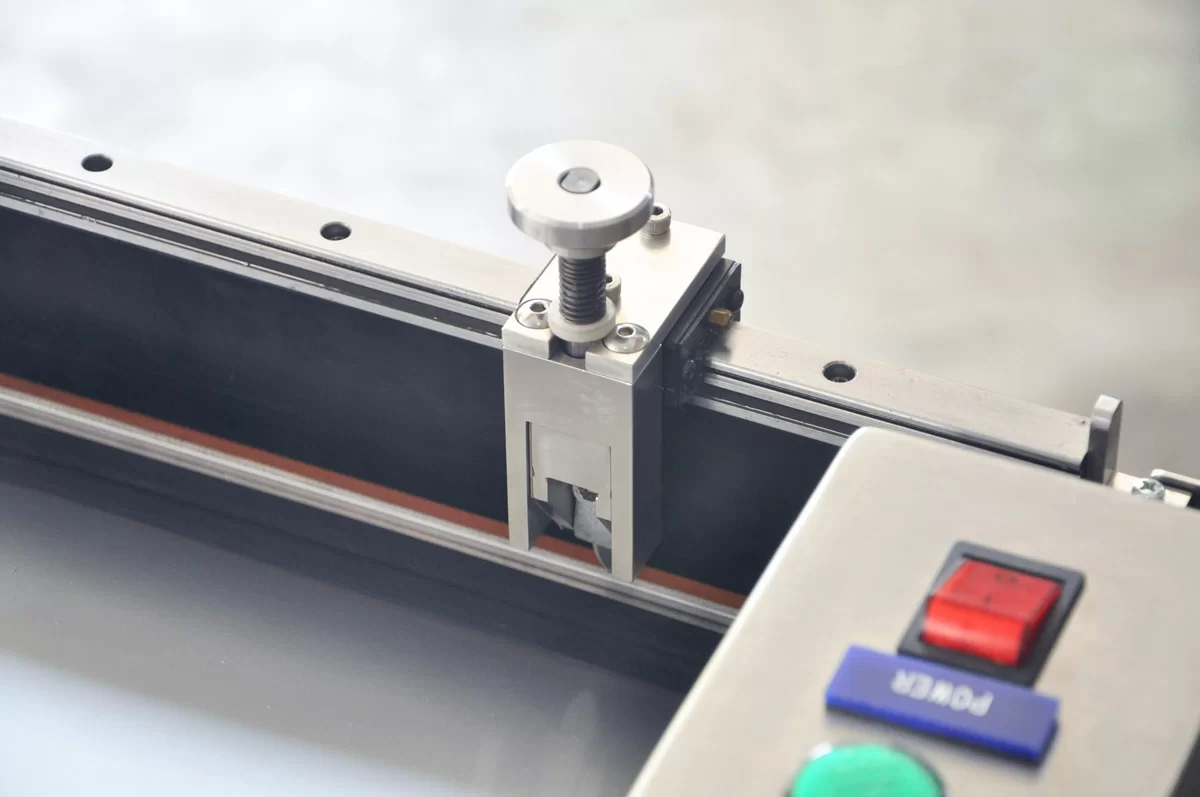

Shielded cutting device
Object / Finger anti-pinch safety system
Built-in emergency stop push button
Easy set-up requires only compressed air and standard electrical outlet
Analog timers for sealing and cooling time
Easy heating element & Teflon sheet replacement
Film rollers rack
Suitable to seal polyethylene, polypropylene and thin laminates film
High performance impulse sealing system
Electronic foot pedal switch activated

Technical Specifications

Model	SPT-18	SPT-24	SPT-30
Power:	Single Phase AC 110V, 60Hz
Air Requirement:	82 PSI @ 5 cfm
Dimensions:	(L) 25″ x (W) 21¾” x (H) 21¾”	(L) 31″ x (W) 21¾” x (H) 21¾”	(L) 37″ x (W) 21¾” x (H) 21¾”
Seal Dimension:	(L) 18″ x (W) 2.5mm	(L) 24″ x (W) 2.5mm	(L) 30″ x (W) 2.5mm
Control System:	Analog timers system
Impulse Power:	600 W	750 W	900 W
