VMT-16

Cleanroom Type Chamber Vacuum Sealer

VMT-16 chamber type vacuum sealer is designed for meeting critical cleanroom application. It’s control system is powered by PLC controller and touchscreen (HMI) for precise settings and user-friendly operations. Unlike electromechanically driven vacuum sealers, our characteristic NasaVAC design prevents particle generation and oil contamination that often lead to costly maintenance and downtime

Features

Compatible to cleanroom up to Class 100
Stainless steel chassis
High performance impulse sealing system
Aluminum alloy sealing bar
Compact design to suite R&D laboratory, small workspace
Clean, quiet, non-particle generating, 100% maintenance free air-driven vacuum ejector
Object / Finger anti-pinch chamber cover safety system
Built-in emergency stop push button
Easy set-up requires only compressed air and standard electrical outlet
PLC Control & Touch Screen (HMI) system
10 programmable memory for vacuum time, seal time and cool time settings
Easy sealing element and Teflon tape replacement
Emergency reset system
Transparent Glass Lid
Easy sealing element and Teflon tape replacement
Password protection for setup page
Packing counter for production monitoring
Visible and audible alarm
Air cylinder chamber lid closing

Technical Specifications

Model	VMT-16
Power:	Single Phase AC 110V, 60Hz
Dimensions:	(L) 23 ¾” x (W) 19 ¾” x (H) 16 ¾”
Machine Weight:	150 lb
Chamber Height:	4″ (Effective Depth = 3 ¾”)

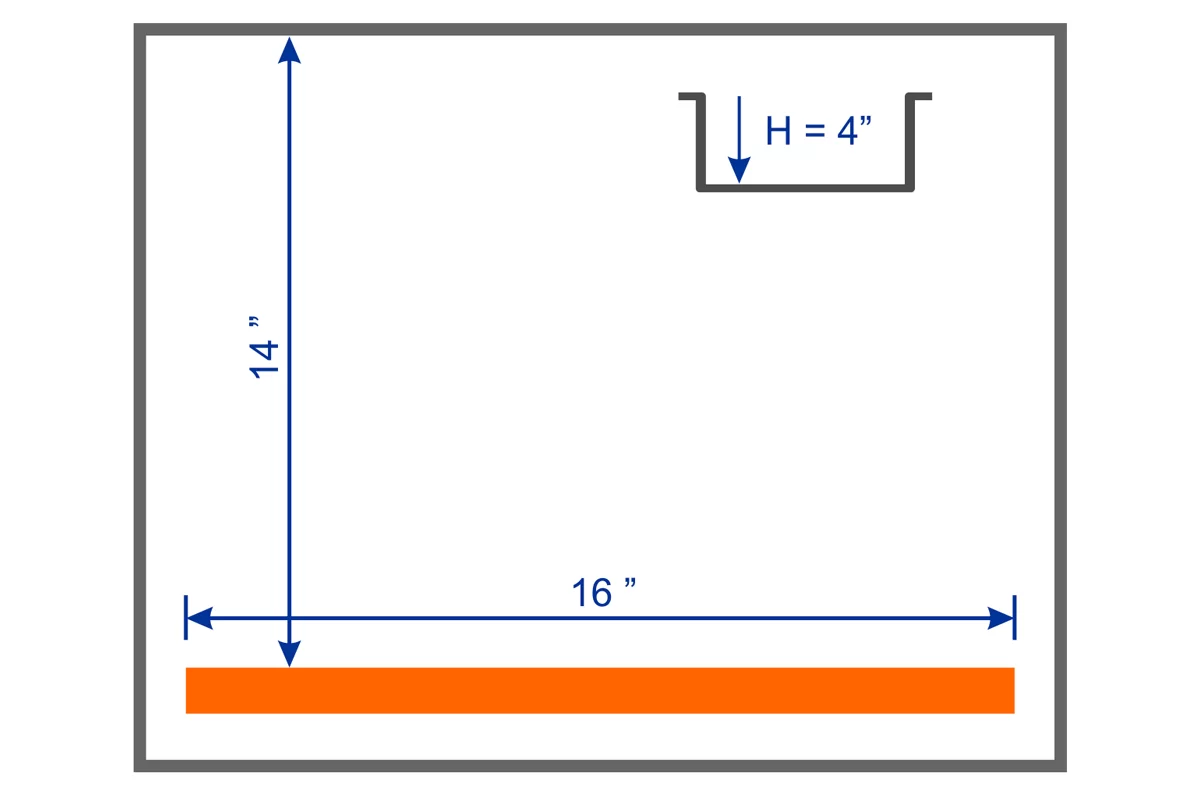

Chamber Dimension:	(L) 16″ x (W) 14″ x (H) 4″
Sealing Bar Configuration:	Front
Sealing Length:	16″
Sealing Width:	2.5mm x 2 Lines Flat Heating Element
Maximum Vacuum:	-27 inHg
Vacuum:	9.42 CFM Air Driven Vacuum Ejector
